Model
B3/30AC

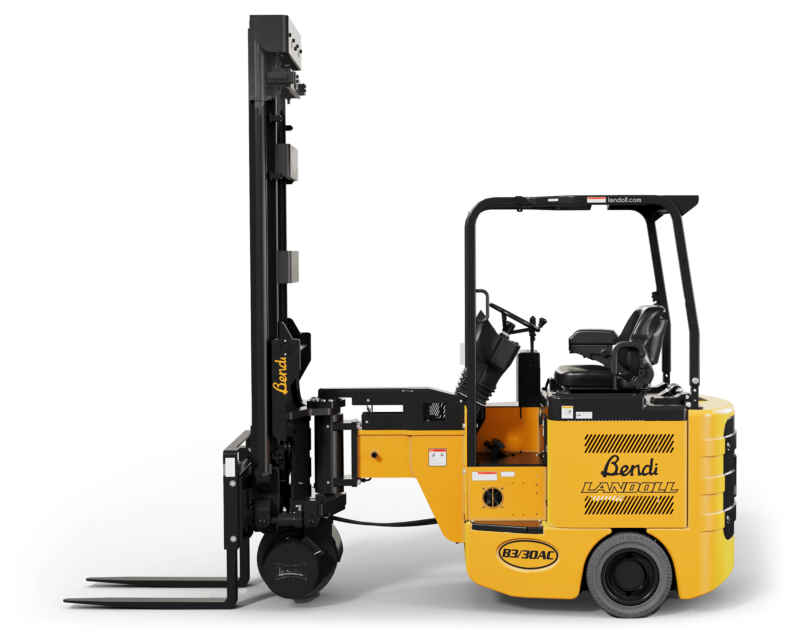

Electric Multi-Purpose VNA Articulated Forklift Truck
VNA forklift that can work indoors and out on paved surfaces
Features
The Bendi model B3/30AC works in aisles as narrow as 72″ (1.8M), has a basic capacity of 3,000 lbs. (1,361kg) at 24″ (609.6mm) load center and has lift heights available to 30′ (9.14M) – maximizing warehouse space by 50% more than a counterbalanced and 35% more than a reach truck.
Specifications
General Data
Power Type
Battery / Electric
Load Capacity (lbs./kgs.)
3000 lbs.
Load Center
24 in.
Exterior Dimensions
Tilt Range
1 / 2
Length to Fork Face
112.9
Overhead Guard Height
89
Chassis Height (lowered)
44.8
Underclearance (lowered)
3
Performance
Lifting Speed - Full Load (fpm)
90
Lifting Speed - No Load (fpm)
110
Lowering Speed - Full Load (fpm)
100
Lowering Speed - No Load (fpm)
90
Gradeability - Maximum - Full Load
5
Gradeability - Maximum - No Load
8
Maximum Travel Speed - Full Load (mph)
5.5
Maximum Travel Speed - No Load (mph)
6
Truck Weights
Total Weight (lb.)
12,800 with Battery
Tires
Wheelbase (in.)
72.6
Battery Features
Battery Compartment Width (in.)
27.5" x 38.75" x 23"
Battery Weight Maximum (lb.)
3100
Battery Weight Minimum (lb.)
2550
