Features

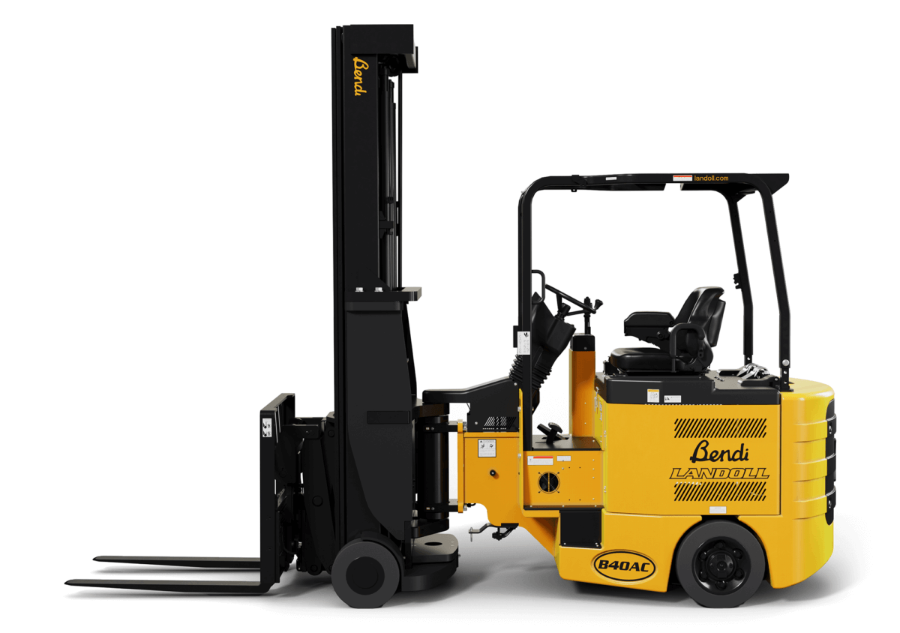

B40AC-DR / B50AC-DR Specifications:

Four Wheel Design, Dual Rear Wheel Drive
8” (200 mm) Stroke Integral Side Shifter
41” (1041 mm) Stroke Integral Pantograph Reach
52” (1321 mm) Reach From Face of Mast
33” (838 mm) Wide Tilting and Side Shifting Fork Carriage
Adjustable Seat and Steering Wheel
Rotation via DuraSteerTM Actuator, with 5-Year Warranty on Articulation
Dual Curtis AC Traction Motor Controllers
Curtis AC Hydraulic Motor Controller
Battery Discharge Indicator with Slow Alert
Hydraulic Disk Brakes
“Floating” Articulated Front Axle
One Parts and Operator’s Manual Included
Curtis Engage Dash Display
Hand Actuated Parking Brake
36” (914mm) High Backrest
High Visibility Mast
170˚ Rear View Mirror
Safety Seat Switch and Seat Belt
Fixed Mast with Carriage Tilt of 1º Fwd / 2º Rwd
48 Volt Electrical System
Three Section Hydraulic Control Valve
Smooth Rubber Drive Tires
Soft Polyurethane Load Wheel Tires
40” Tapered Tip Forks – Rear Tow Hitch Pin
Meets ANSI B56.1

Specifications

General Data

Power Type

Battery / Electric

Operator Position

Seated

Load Capacity (lbs./kgs.)

2500 lbs.

Load Center
