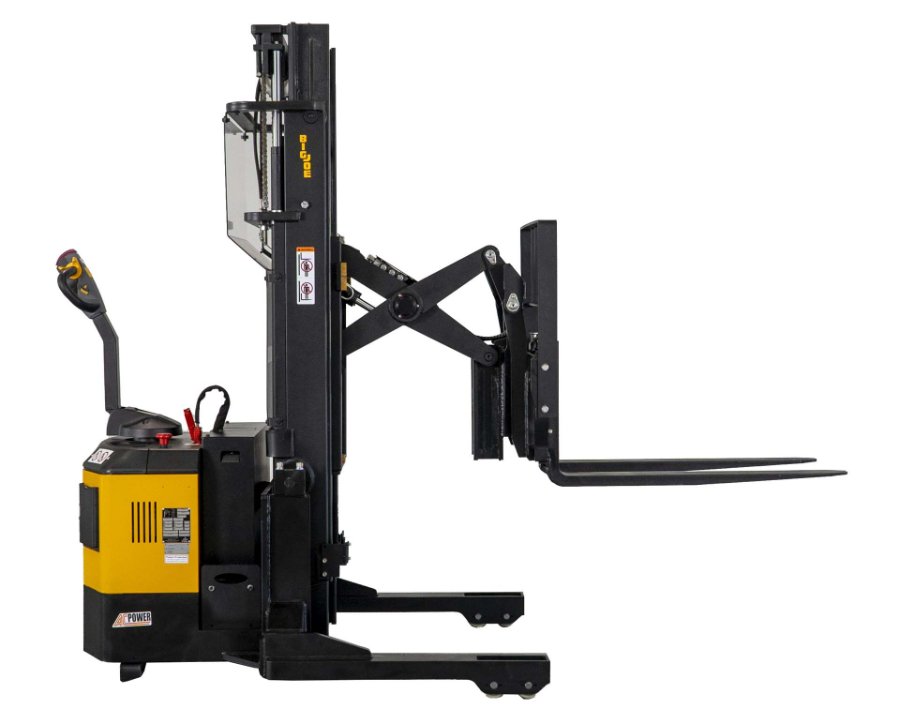

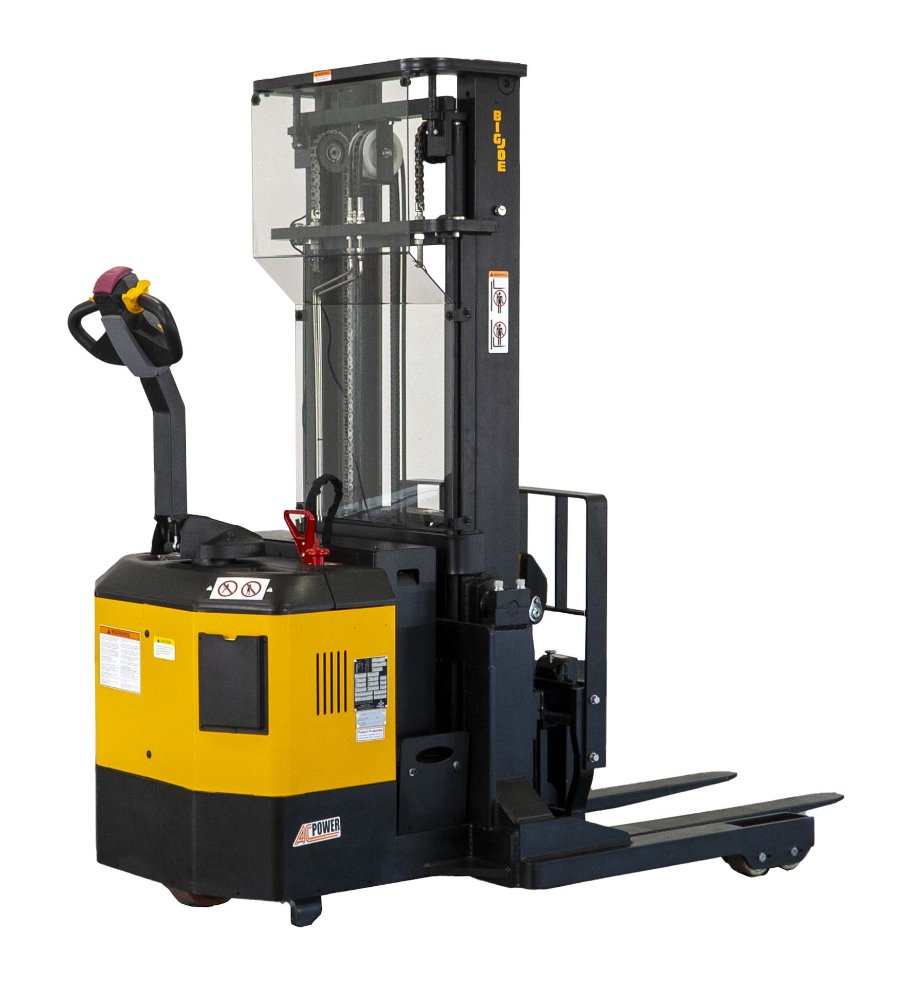

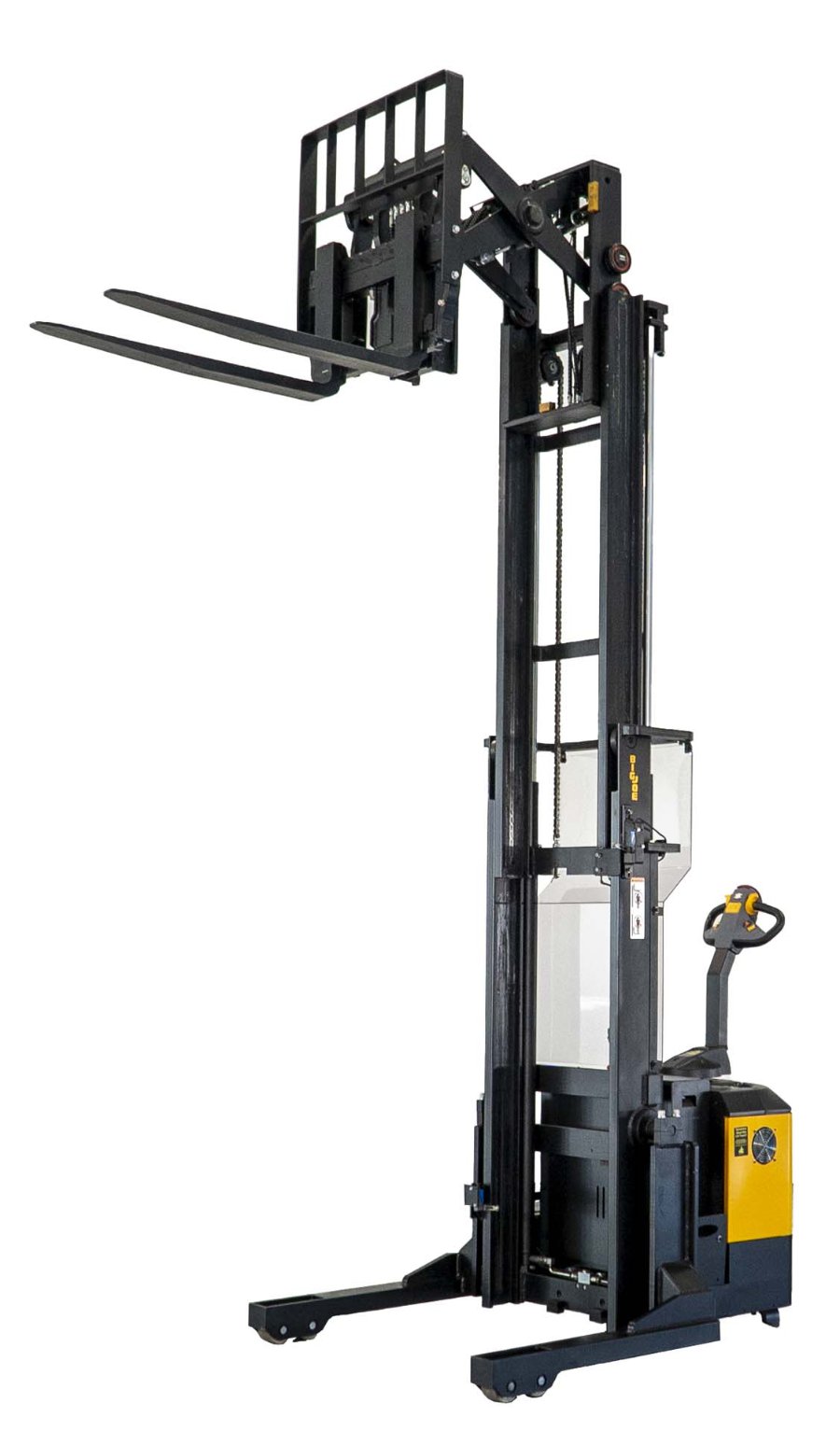

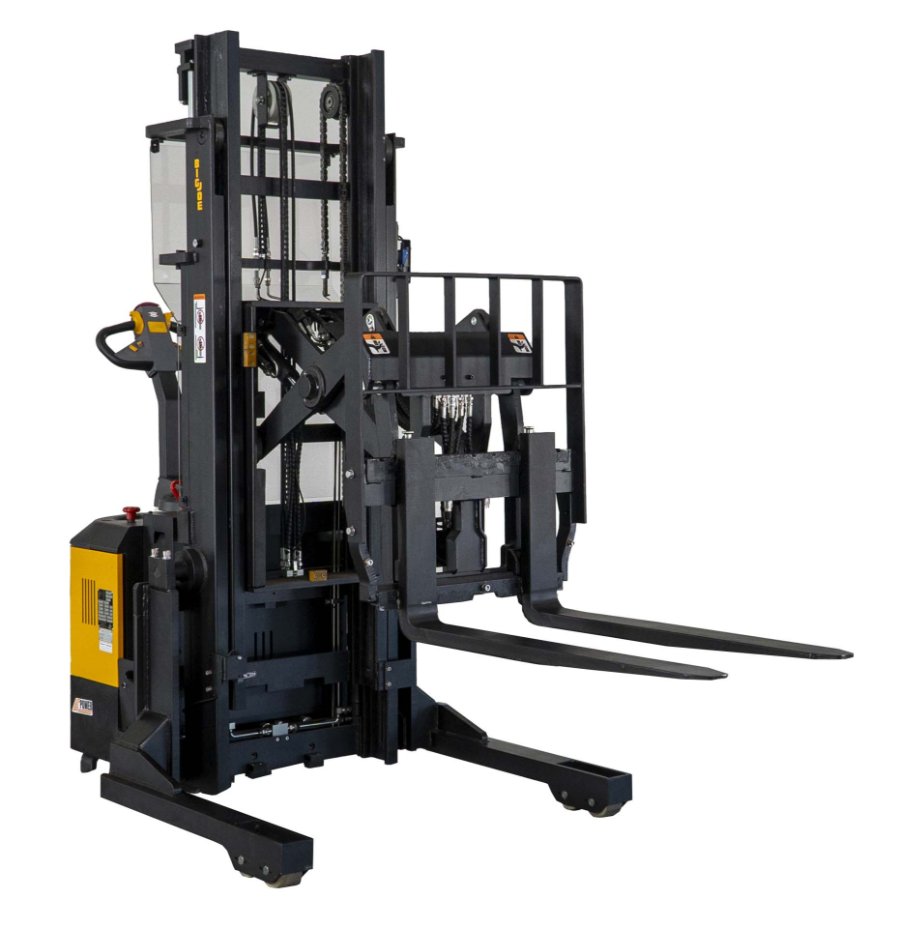

Model PDSR

3,000 lb. Power Steering Walkie Reach Truck

3,000lb capacity models with lift heights to 189"

The PDSR combines the tight turning characteristics and low operating cost of a walkie straddle stacker with the flexibility of a counterbalanced truck through the use of a pantograph. This mechanism extends the loads being handled beyond the straddle legs to lift or lower products and can be retracted for compact turns. With the addition of power steering, sideshift, proportional hydraulics, and tilt, the PDSR delivers exceptional versatility and easy intuitive control.

Apply For Financing Request A Quote

Request Rental Quote

Features

PDSR Features:

24volt ZAPI transistor control with high torque AC drive motor.
Pantograph extends forks beyond straddle legs.
Power steering, sideshift, tilt and proportional lift, lower, extend & retract
Choice of 34"/42" or 42"/50" fixed straddle legs.
Ergonomic control handle with safety reversing switch and horn
Industrial battery or 224 AH Maintenace free battery pack
Battery discharge indicator with hour meter
Key switch to limit access to approved personnel

Specifications

General Data

Load Capacity (lbs./kgs.)

3000

Load Center

24"

Performance

Maximum Travel Speed - Full Load (mph)

3.1

Maximum Travel Speed - No Load (mph)

3.4

Lifting Speed - Full Load (fpm)

Lifting Speed - No Load (fpm)

Lowering Speed - Full Load (fpm)

Lowering Speed - No Load (fpm)

Truck Weights

Total Weight (lb.)

3,690-4,200lbs Chassis Only

Battery Features

Battery Compartment Width (in.)

31.6” x 9.06” x open

Resources

Download Brochure
