Model S26

2,600 lb. Integrated Lithium-Ion Walkie Straddle Stacker

2,600 lb. capacity model with a maximum lift height of 149". Available in 2-stage and monomast options.

Apply For Financing Request A Quote

Request Rental Quote

Features

S26 Features:

24V infinitely variable travel control
DC drive and lift motor
UL-recognized 24V 100Ah lithium-ion bettery
30A, 120 VAC integral, plug-in smart charger
Adjustable straddle legs: 42" to 51" in 3" increments

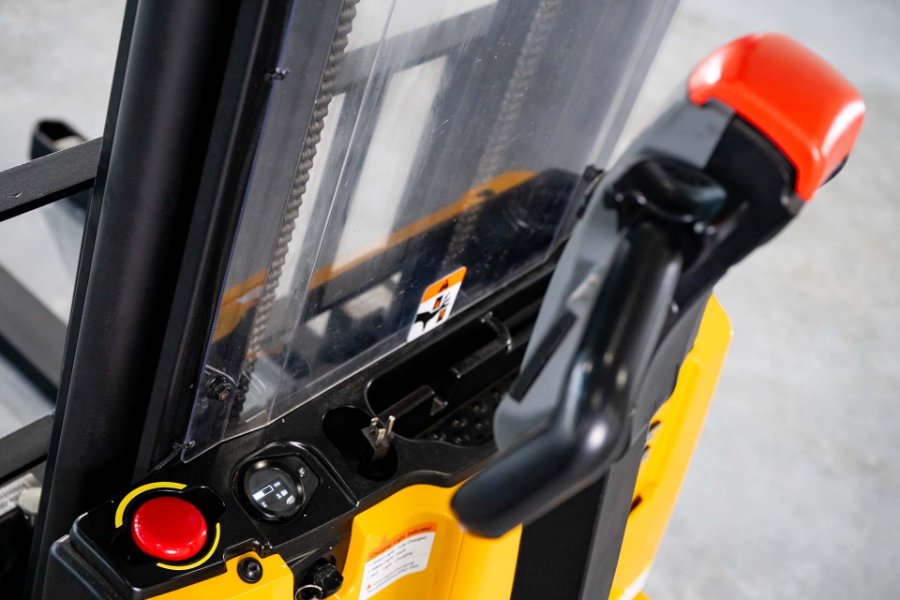

Offset control handle, thumb control travel functions
Lift and lowering controls in the handle
Battery discharge indicator, hour meter, and key switch

Specifications

General Data

Load Center

2600

Power Type

Exterior Dimensions

Fork Spread Max. / Min. (in.)

7.9 - 30.7

Turning Radius (in.)

Load Distance (in.)

30.4

Performance

Maximum Travel Speed - Full Load (mph)

2.5

Maximum Travel Speed - No Load (mph)

2.8

Lifting Speed - Full Load (fpm)

29.5

Lifting Speed - No Load (fpm)

47.2

Lowering Speed - Full Load (fpm)

39.4

Lowering Speed - No Load (fpm)

41.3

Gradeability - 1 mph - Full Load

Gradeability - Maximum - Full Load

Tires

Number (front / rear)

1x, 1/4

Size - Front

8.5 x 3

Size - Rear

4 x 2

Wheelbase (in.)

48.6

Tread Width - Front (in.)

21.4

Brake - Service / Parking

Electromagnetic

Tread Width - Rear (in.)

42.1 / 45.1 / 48.1 / 51.1

Resources

Download Brochure
