Model CB18
CB18

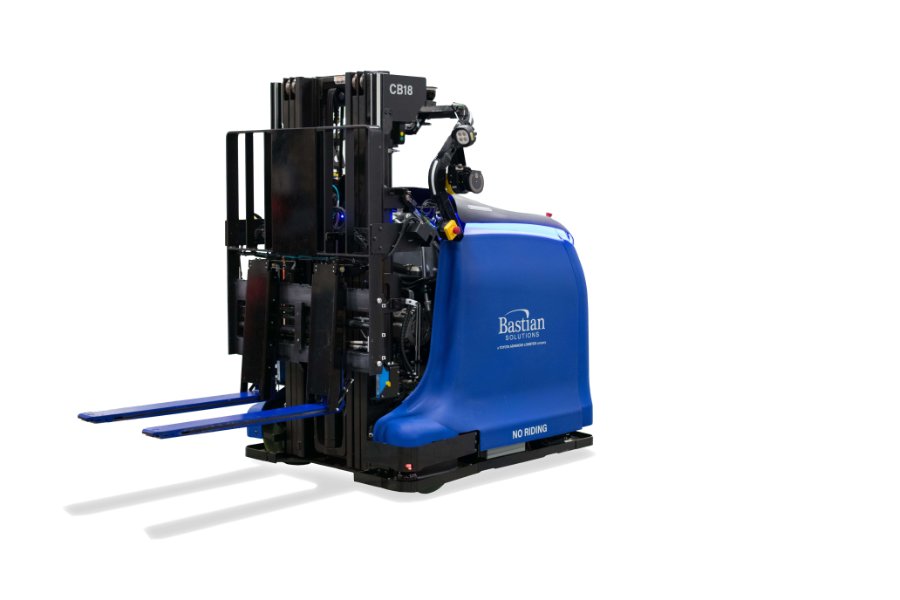

The CB18 Automated Guided Forklift is a solution for a variety of tasks and material handling needs. Equipped with a three-stage mast the CB18 can reach up to 176 in. without compromising load stability. Adjustable forks and dynamic scanning of the environment promotes proper load handling for standard and oversized pallets.
Features
Specifications
General Data
Load Capacity (lbs./kgs.)
4000 (1800)
Guidance Method
Natural Feature via 2D LiDAR
Exterior Dimensions
Maximum Fork Height (MFH) (in.)
176 (4470)
Fork Size (T x W x L) (in.)
4.8 x 42-48 (122 x 1066.8-1219.2)
Fork Spread Max. / Min. (in.)
39.1 / 6 (993.5 / 152.4)
Tilt Range (deg)
+/- 5
Length to Fork Face (in.)
73.5 (1867)
Overall Width (in.)
50.3 (1277.6)
Mast Lowered Height (in.)
82.9 (2104.6)
Mast Extended Height (in.)
230 (5842)
Turning Radius (in.)
57.85 (1469.4)
Load Distance (in.)
17.1 (434.3)
Rear Overhang (in.)
56.4 (1432.6)
Basic Right-Angle Stacking Aisle Width (in.)
74.85 (1901.2)
Steering Arc
Overly constrained tricycle with dual traction wheels
Free Lift
62.1 (1577)
Performance
Maximum Travel Speed - Full Load (mph)
4.5 (2)
Maximum Travel Speed - No Load (mph)
4.5 (2)
Tires
Brake - Service / Parking
Electro-magnetic
Power System
Battery Type
Lithium-Ion
Battery Features
Voltage/Capacity
48V
Control Type
AC Motors
