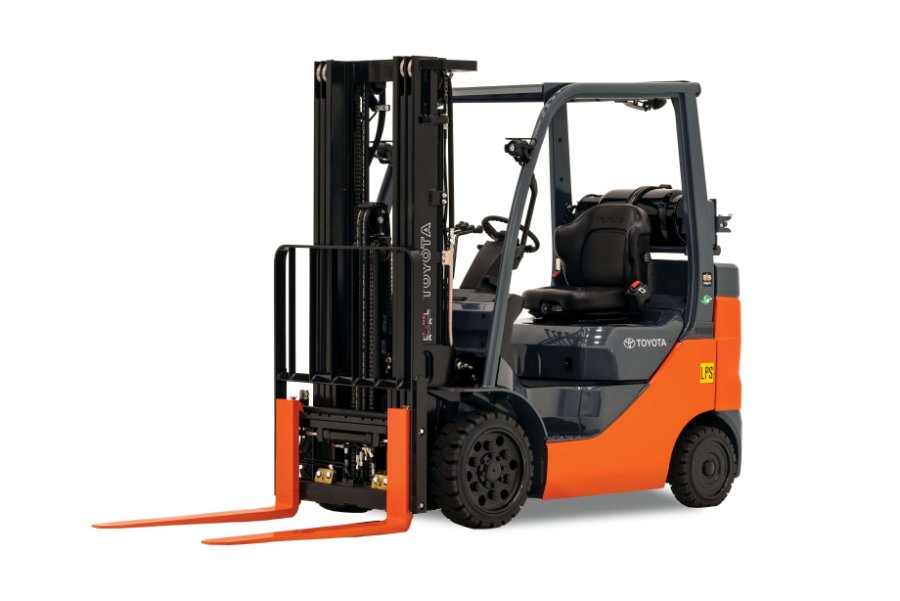

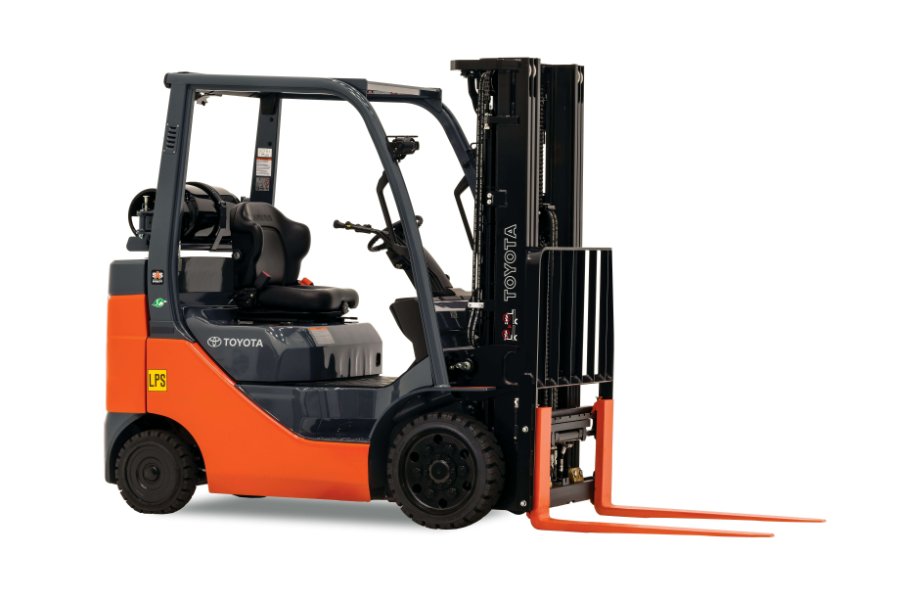

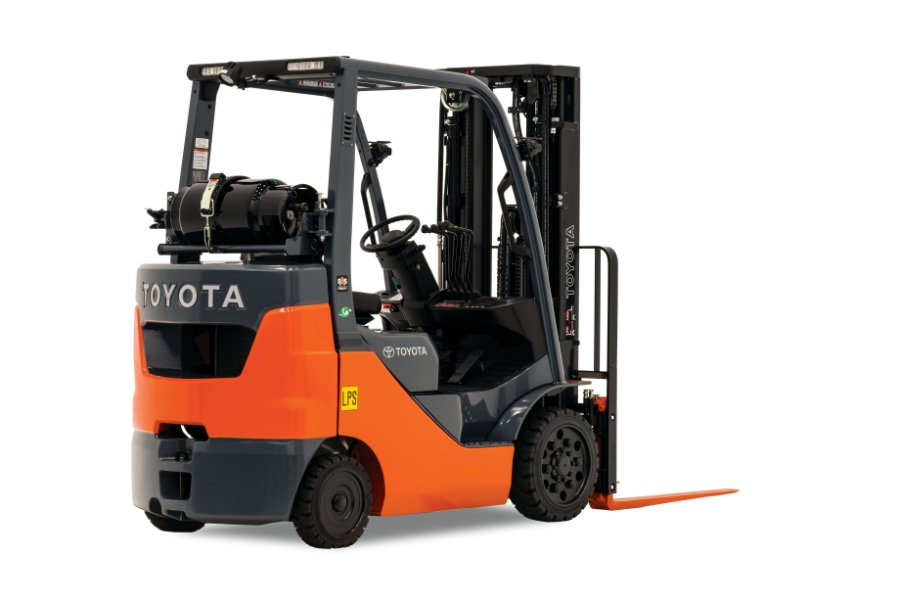

    Core IC Cushion Forklift

    3,000-6,500 lb. Lifting Capacity

    Toyota’s Core IC Cushion Forklift is one of the most popular counterbalance forklifts in North America. Warehousing and distribution applications, the auto industry, general manufacturing plants and retail storefronts often utilize Toyota’s Core IC Cushion for its extreme versatility. Powerful enough to lift up to 6,500 lbs. yet capable of navigating in 12-foot aisles, the Core IC Cushion forklift is a trusted multipurpose forklift.

    Apply For Financing Request A Quote
    Request Rental Quote

    Features

    A Solid Foundation

    Toyota designed and built the legendary 4Y engine for maximum durability, serviceability, and performance. Automotive-style mounts with 3-point engine and transmission mounting reduces vibration.

    System of Active Stability™ and Active Mast Control™ monitor forklift conditions and automatically reacts to reduce the likelihood of a tip-over when traveling and load handling.
    Lower Fuel Consumption*

    Comprehensive cycle testing shows that Toyota’s 8FGCU25 model consumes 8.36% less fuel while completing 1.96% more cycles than the competitor models, resulting in fewer operational costs and improved productivity
    Comfort Comes Standard

    Ample floor space, a standard 4-way adjustable full-suspension seat, large, dual operator assist grips, and a foot-activated parking brake make the Core IC Cushion the clear winner when it comes to operator comfort.
    A Visible Difference

    Angled load backrest crossbar, narrower overhead guard cross bar, a dash-mounted display, a wider mast window, and roll-formed overhead guard pillars give Toyota visibility advantages in all directions.

    Versatility to Get Things Done

    At Toyota, we understand that your operation faces increasing demands—and you need forklifts that can keep up. The Toyota Core IC Cushion Forklift is an industry-leading, multipurpose solution designed to perform across a wide range of indoor applications. Every Core IC Cushion model comes standard with Toyota’s innovative System of Active Stability (SAS)™, enhancing operator confidence and helping reduce the risk of tip-overs. When your workflow requires dependable, all-around performance, this versatile forklift delivers the strength and stability your team can count on.

    Specifications

    For more detailed, product specific specification data, select an individual model number from the chart below.

    Model Basic Right-Angle Stacking Aisle Width Lifting Speed - Full Load (fpm) Gradeability - Maximum - Full Load Maximum Travel Speed - Full Load (mph) Load Capacity (lbs./kgs.)
    40-8FGCU20 92.3 120 36 10.6 4000
    40-8FGCU25 94.3 118 31 10.6 5000
    40-8FGCU30 97.5 98 25 10.6 6000
    40-8FGCU32 98.8 98 25 10.6 6500
    50-8FGCSU20 87.6 114 35 10.9 4000
    50-8FGCU15 83.5 114 43 10.9 3000
    50-8FGCU18 86 114 40 10.9 3500
    50-8FGCU20 92.3 120 36 10.6 4000
    50-8FGCU25 94.3 120 31 10.6 5000
    50-8FGCU30 97.5 98 25 10.6 6000
    50-8FGCU32 98.8 98 25 10.6 6500

    Performance Data

    Model

    40-8FGCU20

    Basic Right-Angle Stacking Aisle Width

    92.3

    Lifting Speed - Full Load (fpm)

    120

    Gradeability - Maximum - Full Load

    36

    Maximum Travel Speed - Full Load (mph)

    10.6

    Load Capacity (lbs./kgs.)

    4000

    Model

    40-8FGCU25

    Basic Right-Angle Stacking Aisle Width

    94.3

    Lifting Speed - Full Load (fpm)

    118

    Gradeability - Maximum - Full Load

    31

    Maximum Travel Speed - Full Load (mph)

    10.6

    Load Capacity (lbs./kgs.)

    5000

    Model

    40-8FGCU30

    Basic Right-Angle Stacking Aisle Width

    97.5

    Lifting Speed - Full Load (fpm)

    98

    Gradeability - Maximum - Full Load

    25

    Maximum Travel Speed - Full Load (mph)

    10.6

    Load Capacity (lbs./kgs.)

    6000

    Model

    40-8FGCU32

    Basic Right-Angle Stacking Aisle Width

    98.8

    Lifting Speed - Full Load (fpm)

    98

    Gradeability - Maximum - Full Load

    25

    Maximum Travel Speed - Full Load (mph)

    10.6

    Load Capacity (lbs./kgs.)

    6500

    Model

    50-8FGCSU20

    Basic Right-Angle Stacking Aisle Width

    87.6

    Lifting Speed - Full Load (fpm)

    114

    Gradeability - Maximum - Full Load

    35

    Maximum Travel Speed - Full Load (mph)

    10.9

    Load Capacity (lbs./kgs.)

    4000

    Model

    50-8FGCU15

    Basic Right-Angle Stacking Aisle Width

    83.5

    Lifting Speed - Full Load (fpm)

    114

    Gradeability - Maximum - Full Load

    43

    Maximum Travel Speed - Full Load (mph)

    10.9

    Load Capacity (lbs./kgs.)

    3000

    Model

    50-8FGCU18

    Basic Right-Angle Stacking Aisle Width

    86

    Lifting Speed - Full Load (fpm)

    114

    Gradeability - Maximum - Full Load

    40

    Maximum Travel Speed - Full Load (mph)

    10.9

    Load Capacity (lbs./kgs.)

    3500

    Model

    50-8FGCU20

    Basic Right-Angle Stacking Aisle Width

    92.3

    Lifting Speed - Full Load (fpm)

    120

    Gradeability - Maximum - Full Load

    36

    Maximum Travel Speed - Full Load (mph)

    10.6

    Load Capacity (lbs./kgs.)

    4000

    Model

    50-8FGCU25

    Basic Right-Angle Stacking Aisle Width

    94.3

    Lifting Speed - Full Load (fpm)

    120

    Gradeability - Maximum - Full Load

    31

    Maximum Travel Speed - Full Load (mph)

    10.6

    Load Capacity (lbs./kgs.)

    5000

    Model

    50-8FGCU30

    Basic Right-Angle Stacking Aisle Width

    97.5

    Lifting Speed - Full Load (fpm)

    98

    Gradeability - Maximum - Full Load

    25

    Maximum Travel Speed - Full Load (mph)

    10.6

    Load Capacity (lbs./kgs.)

    6000

    Model

    50-8FGCU32

    Basic Right-Angle Stacking Aisle Width

    98.8

    Lifting Speed - Full Load (fpm)

    98

    Gradeability - Maximum - Full Load

    25

    Maximum Travel Speed - Full Load (mph)

    10.6

    Load Capacity (lbs./kgs.)

    6500
