    Core Electric Forklift

    3,000 - 6,500 lb. Lifting Capacity

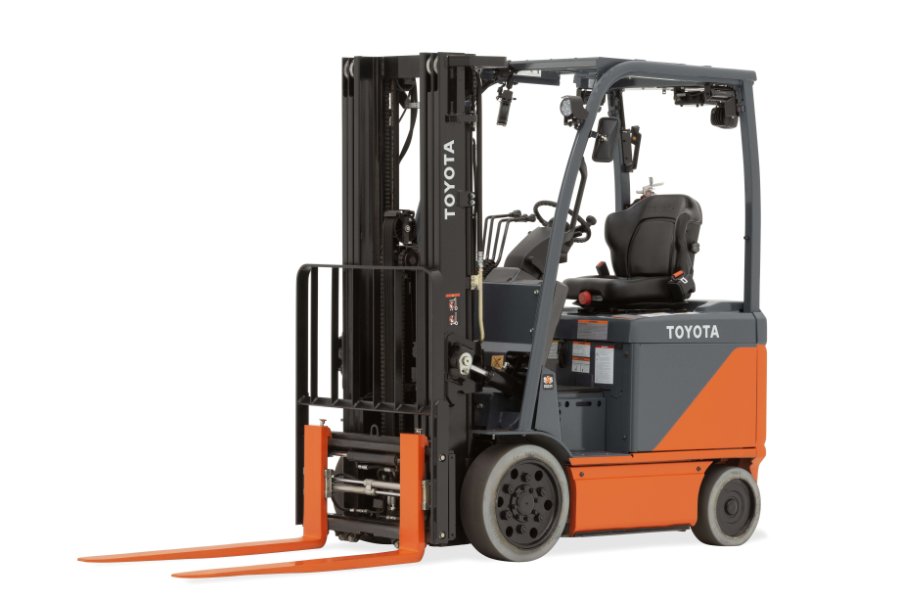

    The Toyota Core Electric Forklift is a compact, electric, counterbalance forklift ideal for indoor and warehouse applications. The Core Electric Forklift is capable of moving almost any load while maintaining the ability to operate in spaces as small as 11 feet wide. A Toyota-designed and built AC motor provides new levels of performance, efficiency, and reliability to maximize your productivity and return on investment.

    Apply For Financing Request A Quote
    Request Rental Quote

    Features

    Proven Performance

     Comprehensive cycle testing shows that Toyota’s 8FBCU25 model completes a cycle 5.6% faster while consuming approximately 5.7% less energy than competitor models.
    Core Electric Forklift Ergonomics

    The four-way adjustable full suspension seat of the Toyota Core Electric Forklift means a wider seat for operators with no hip limitations for easy entry and exit. Hydrostatic power steering (on demand) will provide smooth, responsive operation while isolating vibration and shock. Dual operator assist handles provide operators with a lower, wider step for easy entry and exit from the forklift on both sides. The most ergonomic features of the Core electric forklift include:

    •  11.8" diameter two-spoke flywheel
    • Deck-mounted hydraulic controls
    • Heavy-duty non-slip mat
    • Electric Directional Shift Control
    Precise, Smooth Handling

    Precise, smooth handling for enhanced productivity. Toyota’s patented Electric Power Steering (EPS) technology allows you to operate with precise and programmable control. Available now on 4,000-6,500 lb. sit-down Core Electric counterbalance forklift models, this optional feature delivers a customizable, intuitive experience to help you move effortlessly through your facility. It offers synchronized steering and adjustable resistance, allowing operators to optimize their experience for comfort and efficiency.
    Serviceability

    Toyota's Core Electric Forklift is designed for easy service. This includes motors and controllers that are easily accessible without the need for tools. With an assist on the battery compartment hood and a planned maintenance indicator, operators can focus on the job at hand.

    Specifications

    For more detailed, product specific specification data, select an individual model number from the chart below.

    Model Load Capacity (lbs./kgs.) Maximum Travel Speed - Full Load (mph) Lifting Speed - Full Load (fpm) Gradeability - Maximum - Full Load Basic Right-Angle Stacking Aisle Width (in.)
    8FBC15U 3000 11.5 (36V), 11.5 (48V) 88 (36V), 108 (48V) 20 (36V), 21 (48V) 82.1
    8FBC18U 3500 11.3 (36V), 11.3 (48V) 79 (36V), 100 (48V) 18 (36V), 20 (48V) 82.1
    8FBC20U 4000 10.6 (36V), 12.1 (48V) 75 (36V), 102 (48V) 11-25 (36V) (48V) 87.2
    8FBC20U-COMP 4000 10.6 (36V), 12.1 (48V) 75 (36V), 102 (48V) 11-25 (36V) (48V) 85.2
    8FBC25U 5000 10.6 (36V), 12.1 (48V) 75 (36V), 102 (48V) 9-21 (36V) (48V) 87.6
    8FBC25U-COMP 5000 10.6 (36V), 12.1 (48V) 75 (36V), 102 (48V) 9-21 (36V) (48V) 85.6
    8FBC28U 5500 10.6 (36V), 11.9 (48V) 60 (36V), 89 (48V) 7-20 (36V) (48V) 94.3
    8FBC30U 6000 10.6 (36V), 11.9 (48V) 60 (36V), 89 (48V) 7-20 (36V) (48V) 94.9
    8FBC32U 6500 10.6 (36V), 11.9 (48V) 60(36V), 89 (48V) 7-19 (36V) (48V) 96.5
    8FBCH25U 5000 10.6 (36V), 12.1 (48V) 75 (*36V), 102 (48V) 9-21 (36V) (48V) 93.1
    8FBCH32U 6500 11.9 (36V), 10.6 (48V) 60 (36V), 89 (48V) 7 - 19 (36V) (48V) 100

    Performance Data

    Model

    8FBC15U

    Load Capacity (lbs./kgs.)

    3000

    Maximum Travel Speed - Full Load (mph)

    11.5 (36V), 11.5 (48V)

    Lifting Speed - Full Load (fpm)

    88 (36V), 108 (48V)

    Gradeability - Maximum - Full Load

    20 (36V), 21 (48V)

    Basic Right-Angle Stacking Aisle Width (in.)

    82.1

    Model

    8FBC18U

    Load Capacity (lbs./kgs.)

    3500

    Maximum Travel Speed - Full Load (mph)

    11.3 (36V), 11.3 (48V)

    Lifting Speed - Full Load (fpm)

    79 (36V), 100 (48V)

    Gradeability - Maximum - Full Load

    18 (36V), 20 (48V)

    Basic Right-Angle Stacking Aisle Width (in.)

    82.1

    Model

    8FBC20U

    Load Capacity (lbs./kgs.)

    4000

    Maximum Travel Speed - Full Load (mph)

    10.6 (36V), 12.1 (48V)

    Lifting Speed - Full Load (fpm)

    75 (36V), 102 (48V)

    Gradeability - Maximum - Full Load

    11-25 (36V) (48V)

    Basic Right-Angle Stacking Aisle Width (in.)

    87.2

    Model

    8FBC20U-COMP

    Load Capacity (lbs./kgs.)

    4000

    Maximum Travel Speed - Full Load (mph)

    10.6 (36V), 12.1 (48V)

    Lifting Speed - Full Load (fpm)

    75 (36V), 102 (48V)

    Gradeability - Maximum - Full Load

    11-25 (36V) (48V)

    Basic Right-Angle Stacking Aisle Width (in.)

    85.2

    Model

    8FBC25U

    Load Capacity (lbs./kgs.)

    5000

    Maximum Travel Speed - Full Load (mph)

    10.6 (36V), 12.1 (48V)

    Lifting Speed - Full Load (fpm)

    75 (36V), 102 (48V)

    Gradeability - Maximum - Full Load

    9-21 (36V) (48V)

    Basic Right-Angle Stacking Aisle Width (in.)

    87.6

    Model

    8FBC25U-COMP

    Load Capacity (lbs./kgs.)

    5000

    Maximum Travel Speed - Full Load (mph)

    10.6 (36V), 12.1 (48V)

    Lifting Speed - Full Load (fpm)

    75 (36V), 102 (48V)

    Gradeability - Maximum - Full Load

    9-21 (36V) (48V)

    Basic Right-Angle Stacking Aisle Width (in.)

    85.6

    Model

    8FBC28U

    Load Capacity (lbs./kgs.)

    5500

    Maximum Travel Speed - Full Load (mph)

    10.6 (36V), 11.9 (48V)

    Lifting Speed - Full Load (fpm)

    60 (36V), 89 (48V)

    Gradeability - Maximum - Full Load

    7-20 (36V) (48V)

    Basic Right-Angle Stacking Aisle Width (in.)

    94.3

    Model

    8FBC30U

    Load Capacity (lbs./kgs.)

    6000

    Maximum Travel Speed - Full Load (mph)

    10.6 (36V), 11.9 (48V)

    Lifting Speed - Full Load (fpm)

    60 (36V), 89 (48V)

    Gradeability - Maximum - Full Load

    7-20 (36V) (48V)

    Basic Right-Angle Stacking Aisle Width (in.)

    94.9

    Model

    8FBC32U

    Load Capacity (lbs./kgs.)

    6500

    Maximum Travel Speed - Full Load (mph)

    10.6 (36V), 11.9 (48V)

    Lifting Speed - Full Load (fpm)

    60(36V), 89 (48V)

    Gradeability - Maximum - Full Load

    7-19 (36V) (48V)

    Basic Right-Angle Stacking Aisle Width (in.)

    96.5

    Model

    8FBCH25U

    Load Capacity (lbs./kgs.)

    5000

    Maximum Travel Speed - Full Load (mph)

    10.6 (36V), 12.1 (48V)

    Lifting Speed - Full Load (fpm)

    75 (*36V), 102 (48V)

    Gradeability - Maximum - Full Load

    9-21 (36V) (48V)

    Basic Right-Angle Stacking Aisle Width (in.)

    93.1

    Model

    8FBCH32U

    Load Capacity (lbs./kgs.)

    6500

    Maximum Travel Speed - Full Load (mph)

    11.9 (36V), 10.6 (48V)

    Lifting Speed - Full Load (fpm)

    60 (36V), 89 (48V)

    Gradeability - Maximum - Full Load

    7 - 19 (36V) (48V)

    Basic Right-Angle Stacking Aisle Width (in.)

    100
