Features

Think BIGGER
  • Operator Presence Sensing System (OPSS)
  • EPA / CARB- Certified Diesel Engine - 6 Cylinder
  • Enclosed Operator Cabin
  • Engine Monitoring System
  • 30,000 - 125,000 lb. Capacity
  • Load Center of 24", 36" and 48"
Advantages

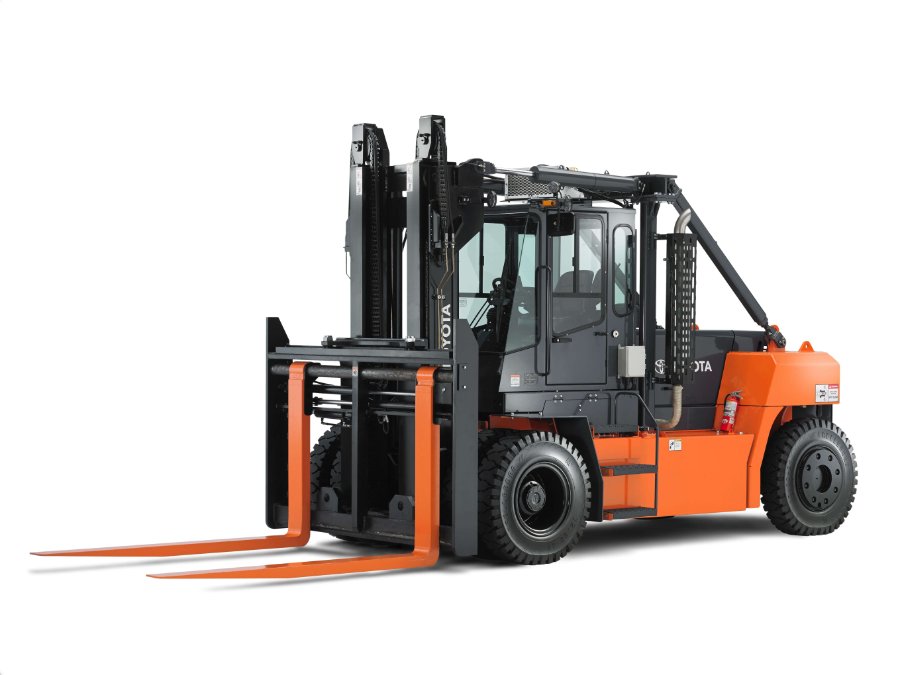

Our biggest forklift is your best weapon for the most demanding jobs. Think ports and shipping containers. Construction sites. Lumber, brick, block, and pipe. Forging and manufacturing. Then think bigger. Think Toyota. With a 6-cylinder CUMMINS® diesel engine, Dana transmission and a lift capacity up to 125,000 pounds, the rugged THD can handle almost any heavy load, even in the most challenging conditions. Ready?

The THD is. Let’s get to work

Built to Take It

The might of a CUMMINS 6.7/8.9-liter, 6-cylinder diesel engine. The pulling power of three forward and three reverse speeds. And the strength of a rigidly welded frame and extremely durable steer axle. Add an engine protection system and wet disc brakes, and you’re set for maximum heavy-duty productivity with minimal downtime. Even the paint is tough. Starting with a two-part, rust-inhibiting basecoat, followed by a two-part polyurethane topcoat. A majority of components are powder coated, too. All for extra corrosion protection. Bring it on, the bigger the better.

Power, Under your Command

All that brawn comes with plenty of brains. A vehicle management system with onboard diagnostics shares useful information and timely alerts on a 7” color touch screen multi-function display. Standard fingertip controls provide smooth material handling and variable speed control of all functions. A low-profile counterweight makes the THD easy to maneuver and puts you confidently in control

Comfortably at Ease, Visibly More Productive

An enclosed operator compartment with clear sight lines reduces exposure to the elements while providing superior visibility. A premium air ride seat, heater, and operator fan come standard, keeping operators comfortably productive over the course of a shift. Add a two-stage, wide-view mast — with lift cylinders mounted directly behind the mast rails — and enjoy a reassuringly wide field of vision, too. See more, do more.

Specifications

For more detailed, product specific specification data, select an individual model number from the chart below.

Model Basic Right-Angle Stacking Aisle Width Lifting Speed - Full Load (fpm) Gradeability - Maximum - Full Load Load Capacity (lbs./kgs.) Maximum Travel Speed - No Load (mph)
THD10000-48 364 34.7 11.7 100000 20
THD11000-48 364 34.7 10.9 110000 20
THD12000-48 441 34.7 10.1 120000 20
THD12500-28 441.13 34.7 9.9 125000 20
THD3000-24 203.2 64.1 (standard) 128.2 (high-speed option 24 30000 23
THD3300-24 227 64.1 (standard) 128.2 (high-speed option 24 33000 23
THD3300S-24 203.2 64.1 (standard) 128.2 (high-speed option 23 33000 23
THD3600-24 237 64.1 (standard) 128.2 (high-speed option 22 36000 23
THD3600-36 242 53.2 (standard) 106.4 (high-speed option) 20 36000 23
THD3600-48 242 53.2 (standard) 106.4 (high-speed option) 19 36000 23
THD3600S-24 206 64.1 (standard) 128.2 (high-speed option) 21 36000 23
THD3600S-48 206.5 53.2 (standard) 106.4 (high-speed option) 19 36000 23
THD4000-48 252 53.2 (standard) 106.4 (high-speed option) 18 40000 23
THD4500-48 305 53.2 (standard) 106.4 (high-speed option) 19 45000 24.9
THD4500S-48 276.3 53.2 (standard) 106.4 (high-speed option) 18 45000 24.9
THD5000-48 305 32.7 (standard) 65.4 (high-speed option) 17 50000 24.9
THD5200-48 305 32.7 (standard) 65.4 (high-speed option) 17 52000 24.9
THD5500-48 305 32.7 (standard) 65.4 (high-speed option) 16 55000 24.9
THD6000-48 315 32.7 (standard) 65.4 (high-speed option) 18 60000 21.1
THD6500-48 315 32.7 (standard) 65.4 (high-speed option) 17 65000 21.1
THD7000-48 315 25 (standard) 50 (high-speed option) 14 70000 21
THD7200-48 315 25 (standard) 50 (high-speed option) 14 72000 21.1
THD8000-48 355.5 43.9 17 80000 19.2
THD8000S-48 319.3 43.9 16.2 80000 19.2
THD9250-48 355.5 43.9 12.1 92500 20
THD9250S-48 327.8 43.9 12.1 92500 20

Performance Data

Model

THD10000-48

Basic Right-Angle Stacking Aisle Width

364

Lifting Speed - Full Load (fpm)

34.7

Gradeability - Maximum - Full Load

11.7

Load Capacity (lbs./kgs.)

100000

Maximum Travel Speed - No Load (mph)

20

Model

THD11000-48

Basic Right-Angle Stacking Aisle Width

364

Lifting Speed - Full Load (fpm)

34.7

Gradeability - Maximum - Full Load

10.9

Load Capacity (lbs./kgs.)

110000

Maximum Travel Speed - No Load (mph)

20

Model

THD12000-48

Basic Right-Angle Stacking Aisle Width

441

Lifting Speed - Full Load (fpm)

34.7

Gradeability - Maximum - Full Load

10.1

Load Capacity (lbs./kgs.)

120000

Maximum Travel Speed - No Load (mph)

20

Model

THD12500-28

Basic Right-Angle Stacking Aisle Width

441.13

Lifting Speed - Full Load (fpm)

34.7

Gradeability - Maximum - Full Load

9.9

Load Capacity (lbs./kgs.)

125000

Maximum Travel Speed - No Load (mph)

20

Model

THD3000-24

Basic Right-Angle Stacking Aisle Width

203.2

Lifting Speed - Full Load (fpm)

64.1 (standard) 128.2 (high-speed option

Gradeability - Maximum - Full Load

24

Load Capacity (lbs./kgs.)

30000

Maximum Travel Speed - No Load (mph)

23

Model

THD3300-24

Basic Right-Angle Stacking Aisle Width

227

Lifting Speed - Full Load (fpm)

64.1 (standard) 128.2 (high-speed option

Gradeability - Maximum - Full Load

24

Load Capacity (lbs./kgs.)

33000

Maximum Travel Speed - No Load (mph)

23

Model

THD3300S-24

Basic Right-Angle Stacking Aisle Width

203.2

Lifting Speed - Full Load (fpm)

64.1 (standard) 128.2 (high-speed option

Gradeability - Maximum - Full Load

23

Load Capacity (lbs./kgs.)

33000

Maximum Travel Speed - No Load (mph)

23

Model

THD3600-24

Basic Right-Angle Stacking Aisle Width

237

Lifting Speed - Full Load (fpm)

64.1 (standard) 128.2 (high-speed option

Gradeability - Maximum - Full Load

22

Load Capacity (lbs./kgs.)

36000

Maximum Travel Speed - No Load (mph)

23

Model

THD3600-36

Basic Right-Angle Stacking Aisle Width

242

Lifting Speed - Full Load (fpm)

53.2 (standard) 106.4 (high-speed option)

Gradeability - Maximum - Full Load

20

Load Capacity (lbs./kgs.)

36000

Maximum Travel Speed - No Load (mph)

23

Model

THD3600-48

Basic Right-Angle Stacking Aisle Width

242

Lifting Speed - Full Load (fpm)

53.2 (standard) 106.4 (high-speed option)

Gradeability - Maximum - Full Load

19

Load Capacity (lbs./kgs.)

36000

Maximum Travel Speed - No Load (mph)

23

Model

THD3600S-24

Basic Right-Angle Stacking Aisle Width

206

Lifting Speed - Full Load (fpm)

64.1 (standard) 128.2 (high-speed option)

Gradeability - Maximum - Full Load

21

Load Capacity (lbs./kgs.)

36000

Maximum Travel Speed - No Load (mph)

23

Model

THD3600S-48

Basic Right-Angle Stacking Aisle Width

206.5

Lifting Speed - Full Load (fpm)

53.2 (standard) 106.4 (high-speed option)

Gradeability - Maximum - Full Load

19

Load Capacity (lbs./kgs.)

36000

Maximum Travel Speed - No Load (mph)

23

Model

THD4000-48

Basic Right-Angle Stacking Aisle Width

252

Lifting Speed - Full Load (fpm)

53.2 (standard) 106.4 (high-speed option)

Gradeability - Maximum - Full Load

18

Load Capacity (lbs./kgs.)

40000

Maximum Travel Speed - No Load (mph)

23

Model

THD4500-48

Basic Right-Angle Stacking Aisle Width

305

Lifting Speed - Full Load (fpm)

53.2 (standard) 106.4 (high-speed option)

Gradeability - Maximum - Full Load

19

Load Capacity (lbs./kgs.)

45000

Maximum Travel Speed - No Load (mph)

24.9

Model

THD4500S-48

Basic Right-Angle Stacking Aisle Width

276.3

Lifting Speed - Full Load (fpm)

53.2 (standard) 106.4 (high-speed option)

Gradeability - Maximum - Full Load

18

Load Capacity (lbs./kgs.)

45000

Maximum Travel Speed - No Load (mph)

24.9

Model

THD5000-48

Basic Right-Angle Stacking Aisle Width

305

Lifting Speed - Full Load (fpm)

32.7 (standard) 65.4 (high-speed option)

Gradeability - Maximum - Full Load

17

Load Capacity (lbs./kgs.)

50000

Maximum Travel Speed - No Load (mph)

24.9

Model

THD5200-48

Basic Right-Angle Stacking Aisle Width

305

Lifting Speed - Full Load (fpm)

32.7 (standard) 65.4 (high-speed option)

Gradeability - Maximum - Full Load

17

Load Capacity (lbs./kgs.)

52000

Maximum Travel Speed - No Load (mph)

24.9

Model

THD5500-48

Basic Right-Angle Stacking Aisle Width

305

Lifting Speed - Full Load (fpm)

32.7 (standard) 65.4 (high-speed option)

Gradeability - Maximum - Full Load

16

Load Capacity (lbs./kgs.)

55000

Maximum Travel Speed - No Load (mph)

24.9

Model

THD6000-48

Basic Right-Angle Stacking Aisle Width

315

Lifting Speed - Full Load (fpm)

32.7 (standard) 65.4 (high-speed option)

Gradeability - Maximum - Full Load

18

Load Capacity (lbs./kgs.)

60000

Maximum Travel Speed - No Load (mph)

21.1

Model

THD6500-48

Basic Right-Angle Stacking Aisle Width

315

Lifting Speed - Full Load (fpm)

32.7 (standard) 65.4 (high-speed option)

Gradeability - Maximum - Full Load

17

Load Capacity (lbs./kgs.)

65000

Maximum Travel Speed - No Load (mph)

21.1

Model

THD7000-48

Basic Right-Angle Stacking Aisle Width

315

Lifting Speed - Full Load (fpm)

25 (standard) 50 (high-speed option)

Gradeability - Maximum - Full Load

14

Load Capacity (lbs./kgs.)

70000

Maximum Travel Speed - No Load (mph)

21

Model

THD7200-48

Basic Right-Angle Stacking Aisle Width

315

Lifting Speed - Full Load (fpm)

25 (standard) 50 (high-speed option)

Gradeability - Maximum - Full Load

14

Load Capacity (lbs./kgs.)

72000

Maximum Travel Speed - No Load (mph)

21.1

Model

THD8000-48

Basic Right-Angle Stacking Aisle Width

355.5

Lifting Speed - Full Load (fpm)

43.9

Gradeability - Maximum - Full Load

17

Load Capacity (lbs./kgs.)

80000

Maximum Travel Speed - No Load (mph)

19.2

Model

THD8000S-48

Basic Right-Angle Stacking Aisle Width

319.3

Lifting Speed - Full Load (fpm)

43.9

Gradeability - Maximum - Full Load

16.2

Load Capacity (lbs./kgs.)

80000

Maximum Travel Speed - No Load (mph)

19.2

Model

THD9250-48

Basic Right-Angle Stacking Aisle Width

355.5

Lifting Speed - Full Load (fpm)

43.9

Gradeability - Maximum - Full Load

12.1

Load Capacity (lbs./kgs.)

92500

Maximum Travel Speed - No Load (mph)

20

Model

THD9250S-48

Basic Right-Angle Stacking Aisle Width

327.8

Lifting Speed - Full Load (fpm)

43.9

Gradeability - Maximum - Full Load

12.1

Load Capacity (lbs./kgs.)

92500

Maximum Travel Speed - No Load (mph)

20
