25,000-80,000 lb. Lifting Capacity

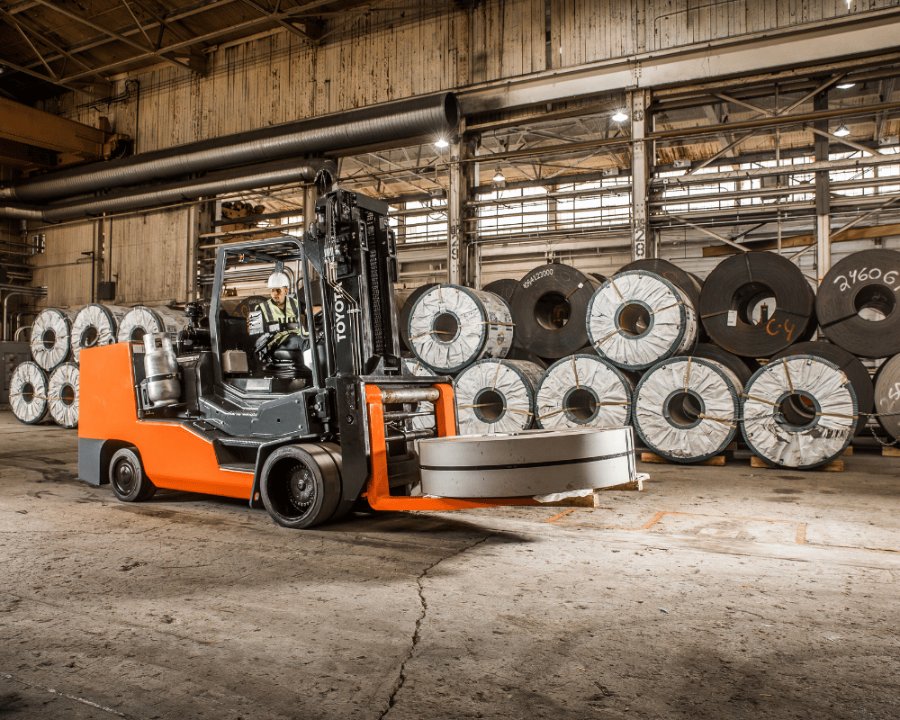

Toyota knows that sometimes hauling high-capacity loads is an inside job. The Toyota High-Capacity Large IC Cushion Forklift is an indoor mammoth of a machine. Ideal for automotive environments and for moving steel inside manufacturing facilities, it gives you the ability to lift up to 80,000 lbs. of the toughest loads around. And with one of the leading engines in its class, the Toyota High-Capacity Large Cushion Forklift is as dependable as it is strong.

Apply For Financing Request A Quote

Request Rental Quote

Features

360 Degrees of Quality, Durability & Value

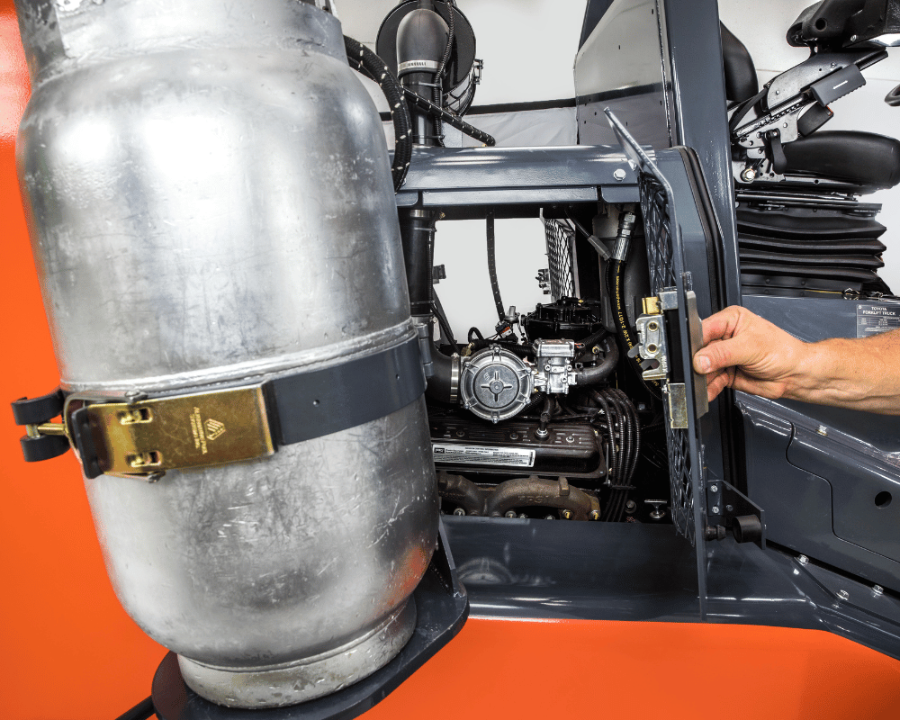

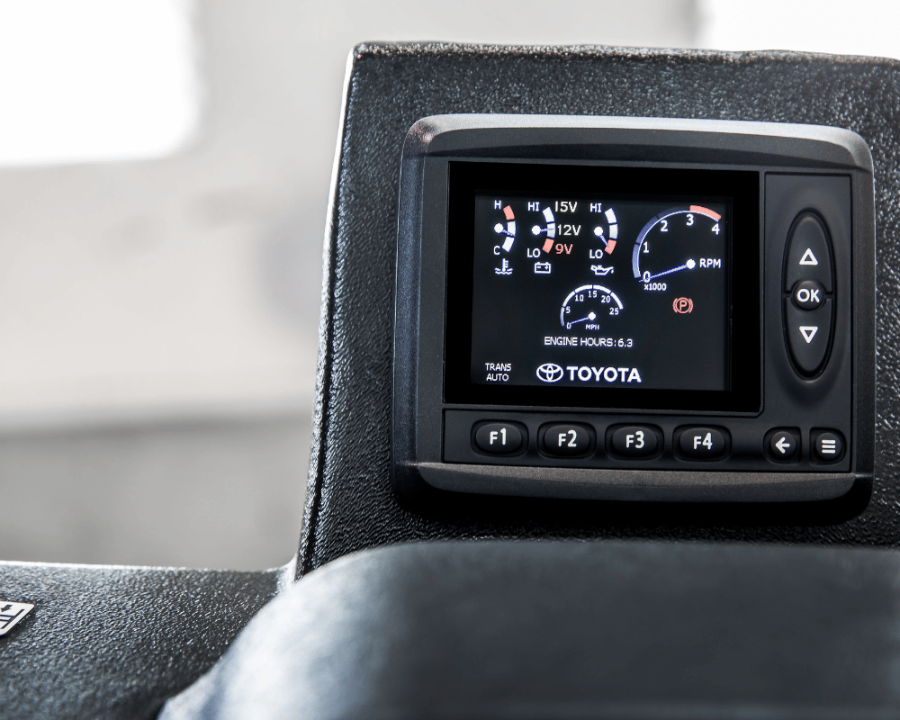

Toyota’s High-Capacity Large IC Cushion Forklift comes with a V8 LP engine and heavy-duty planetary drive axle. This product comes with a digital instrument display that gives fuel, engine, transmission, battery, service, and temperature information. The High-Capacity Large IC Cushion Forklift has a two-stage wide visible mast to provide unobstructed views so you can get work done.

Key Safety Features

Safety features on the High-Capacity Large IC Cushion Forklift include an operator presence sensing system (OPSS), which is built under the seat of the forklift and detects the operator’s presence while in operation. This forklift also includes a neutral safety switch, and an operator restraint system.

Engineered for Operators

That strength comes with plenty of support. An engine management system protects your forklift and keeps delivering the same high-performance work you expect. The digital instrument display keeps you aware of the operating status. Standard fingertip controls provide convenient, comfortable control of all functions for operators, and the high-visibility design help keep operators aware of their surroundings.

Specifications

For more detailed, product specific specification data, select an individual model number from the chart below.

Model	Load Capacity (lbs./kgs.)	Maximum Travel Speed - Full Load (mph)	Lifting Speed - Full Load (fpm)	Gradeability - Maximum - Full Load	Basic Right-Angle Stacking Aisle Width (in.)
THDC2500-24	25000	9.7	61	73.7	167
THDC2500-30	25000	9.7	61	69.9	167.1
THDC3000-24	30000	9.7	61	67.1	167
THDC3000-30	30000	9.7	61	64.7	174
THDC3000-36	30000	9.7	58	61.2	174.3
THDC3500-24	35000	9.7	58	62.9	174.3
THDC4000-30	40000	9.7	41	49.8	184.2
THDC4000-36	40000	9.7	41	47.4	186
THDC4500-30	45000	9.7	41	46.6	186
THDC4500-36	45000	10.3	20	35.3	217.5
THDC5000-30	50000	10.3	20	34.7	217
THDC5000-36	50000	10.3	20	33.3	217.5
THDC5500-36	55000	10.3	20	31.5	217.5

Model

THDC2500-24

Load Capacity (lbs./kgs.)

25000

Maximum Travel Speed - Full Load (mph)

9.7

Lifting Speed - Full Load (fpm)

Gradeability - Maximum - Full Load

73.7

Basic Right-Angle Stacking Aisle Width (in.)

167

Model

THDC2500-30

Load Capacity (lbs./kgs.)

25000

Maximum Travel Speed - Full Load (mph)

9.7

Lifting Speed - Full Load (fpm)

Gradeability - Maximum - Full Load

69.9

Basic Right-Angle Stacking Aisle Width (in.)

167.1

Model

THDC3000-24

Load Capacity (lbs./kgs.)

30000

Maximum Travel Speed - Full Load (mph)

9.7

Lifting Speed - Full Load (fpm)

Gradeability - Maximum - Full Load

67.1

Basic Right-Angle Stacking Aisle Width (in.)

167

Model

THDC3000-30

Load Capacity (lbs./kgs.)

30000

Maximum Travel Speed - Full Load (mph)

9.7

Lifting Speed - Full Load (fpm)

Gradeability - Maximum - Full Load

64.7

Basic Right-Angle Stacking Aisle Width (in.)

174

Model

THDC3000-36

Load Capacity (lbs./kgs.)

30000

Maximum Travel Speed - Full Load (mph)

9.7

Lifting Speed - Full Load (fpm)

Gradeability - Maximum - Full Load

61.2

Basic Right-Angle Stacking Aisle Width (in.)

174.3

Model

THDC3500-24

Load Capacity (lbs./kgs.)

35000

Maximum Travel Speed - Full Load (mph)

9.7

Lifting Speed - Full Load (fpm)

Gradeability - Maximum - Full Load

62.9

Basic Right-Angle Stacking Aisle Width (in.)

174.3

Model

THDC4000-30

Load Capacity (lbs./kgs.)

40000

Maximum Travel Speed - Full Load (mph)

9.7

Lifting Speed - Full Load (fpm)

Gradeability - Maximum - Full Load

49.8

Basic Right-Angle Stacking Aisle Width (in.)

184.2

Model

THDC4000-36

Load Capacity (lbs./kgs.)

40000

Maximum Travel Speed - Full Load (mph)

9.7

Lifting Speed - Full Load (fpm)

Gradeability - Maximum - Full Load

47.4

Basic Right-Angle Stacking Aisle Width (in.)

186

Model

THDC4500-30

Load Capacity (lbs./kgs.)

45000

Maximum Travel Speed - Full Load (mph)

9.7

Lifting Speed - Full Load (fpm)

Gradeability - Maximum - Full Load

46.6

Basic Right-Angle Stacking Aisle Width (in.)

186

Model

THDC4500-36

Load Capacity (lbs./kgs.)

45000

Maximum Travel Speed - Full Load (mph)

10.3

Lifting Speed - Full Load (fpm)

Gradeability - Maximum - Full Load

35.3

Basic Right-Angle Stacking Aisle Width (in.)

217.5

Model

THDC5000-30

Load Capacity (lbs./kgs.)

50000

Maximum Travel Speed - Full Load (mph)

10.3

Lifting Speed - Full Load (fpm)

Gradeability - Maximum - Full Load

34.7

Basic Right-Angle Stacking Aisle Width (in.)

217

Model

THDC5000-36

Load Capacity (lbs./kgs.)

50000

Maximum Travel Speed - Full Load (mph)

10.3

Lifting Speed - Full Load (fpm)

Gradeability - Maximum - Full Load

33.3

Basic Right-Angle Stacking Aisle Width (in.)

217.5

Model

THDC5500-36

Load Capacity (lbs./kgs.)

55000

Maximum Travel Speed - Full Load (mph)

10.3

Lifting Speed - Full Load (fpm)

Gradeability - Maximum - Full Load

31.5

Basic Right-Angle Stacking Aisle Width (in.)

217.5

Resources

Download Brochure
