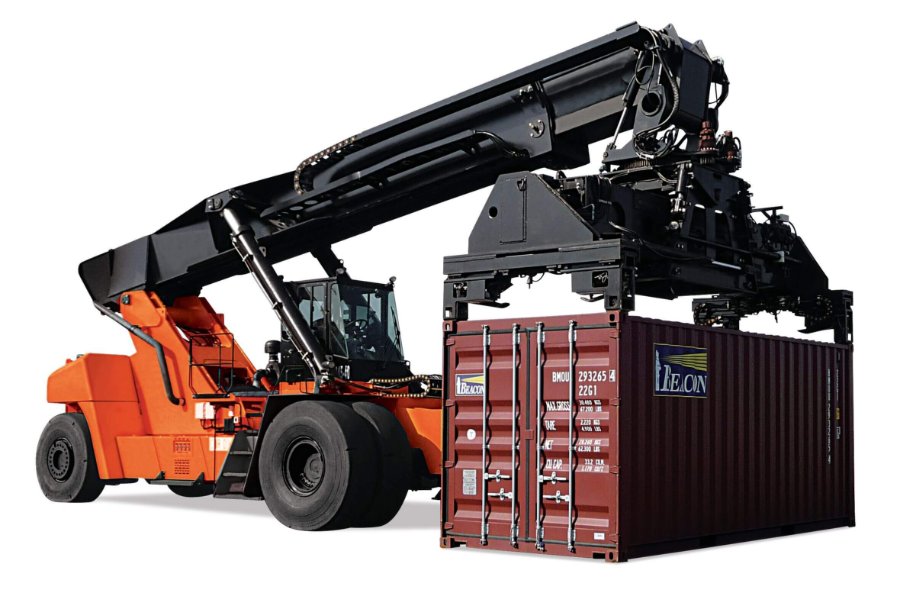

Reach Stacker Container Handler
Up to 99,000 lb. Lifting Capacity
The Toyota Reach Stacker Container Handler is used to handle a diverse range of heavy-lift applications, from loading and unloading trailers to transporting wind turbine components. The Toyota Reach Stacker Container Handler can stack up to five containers high with a reach depth of three rows and lifting capacity of up 99,000 lbs.
Features
Specifications
For more detailed, product specific specification data, select an individual model number from the chart below.
| Model | Basic Right-Angle Stacking Aisle Width | Lifting Speed - Full Load (fpm) | Gradeability - Maximum - Full Load | Maximum Travel Speed - Full Load (mph) | Load Capacity (lbs./kgs.) |
|---|---|---|---|---|---|
| THD9900-R60 | 480 / 565 | 60 | 18.2 | 19.3 | 90000 First Row / 60000 Second Row / 30000 Third Row |
| THD9900-R68 | 480 / 565 | 60 | 17.5 | 19.3 | 90000 First Row / 68000 Second Row / 34000 Third Row |
| THD9900-R73 | 480 / 565 | 60 | 17.2 | 19.3 | 99000 First Row / 72600 Second Row / 38500 Third Row |
| THD9900-R77 | 480 / 565 | 60 | 16.9 | 19.3 | 99000 First Row / 77000 Second Row / 44000 Third Row |
| THD9900-R85 | 480 / 565 | 60 | 15.8 | 20.1 | 99000 First Row / 85000 Second Row / 47000 Third Row |
| THD9900-R90 | 480 / 565 | 60 | 15.6 | 20.1 | 99000 First Row / 90000 Second Row / 68000 Third Row |
Performance Data
Model
THD9900-R60Basic Right-Angle Stacking Aisle Width
480 / 565
Lifting Speed - Full Load (fpm)
60
Gradeability - Maximum - Full Load
18.2
Maximum Travel Speed - Full Load (mph)
19.3
Load Capacity (lbs./kgs.)
90000 First Row / 60000 Second Row / 30000 Third Row
Model
THD9900-R68Basic Right-Angle Stacking Aisle Width
480 / 565
Lifting Speed - Full Load (fpm)
60
Gradeability - Maximum - Full Load
17.5
Maximum Travel Speed - Full Load (mph)
19.3
Load Capacity (lbs./kgs.)
90000 First Row / 68000 Second Row / 34000 Third Row
Model
THD9900-R73Basic Right-Angle Stacking Aisle Width
480 / 565
Lifting Speed - Full Load (fpm)
60
Gradeability - Maximum - Full Load
17.2
Maximum Travel Speed - Full Load (mph)
19.3
Load Capacity (lbs./kgs.)
99000 First Row / 72600 Second Row / 38500 Third Row
Model
THD9900-R77Basic Right-Angle Stacking Aisle Width
480 / 565
Lifting Speed - Full Load (fpm)
60
Gradeability - Maximum - Full Load
16.9
Maximum Travel Speed - Full Load (mph)
19.3
Load Capacity (lbs./kgs.)
99000 First Row / 77000 Second Row / 44000 Third Row
Model
THD9900-R85Basic Right-Angle Stacking Aisle Width
480 / 565
Lifting Speed - Full Load (fpm)
60
Gradeability - Maximum - Full Load
15.8
Maximum Travel Speed - Full Load (mph)
20.1
Load Capacity (lbs./kgs.)
99000 First Row / 85000 Second Row / 47000 Third Row
Model
THD9900-R90Basic Right-Angle Stacking Aisle Width
480 / 565
Lifting Speed - Full Load (fpm)
60
Gradeability - Maximum - Full Load
15.6
Maximum Travel Speed - Full Load (mph)
20.1
Load Capacity (lbs./kgs.)
99000 First Row / 90000 Second Row / 68000 Third Row
