Lithium Large Electric Pneumatic
13,500-17,500 lb. Load Capacity

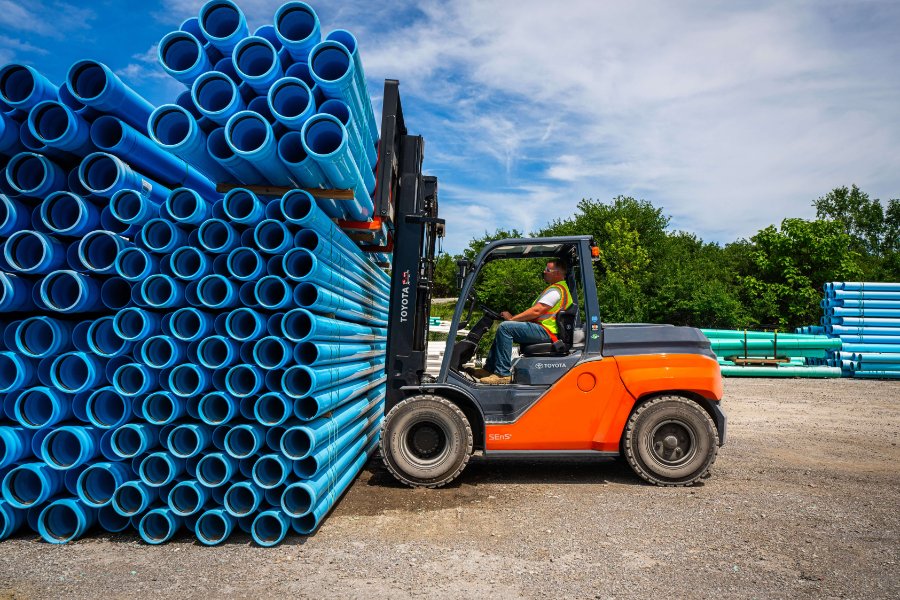

Toyota’s Lithium Large Electric Pneumatic Forklift is the reliable and durable solution you need to handle all of your material handling tasks. This counterbalance forklift packs the power you’d expect from an internal combustion model, but it’s ALL electric. Equipped with a proprietary, custom-designed lithium-ion battery, this forklift is built with the power your operation needs to get to the next level. The Lithium Large Electric Pneumatic was specifically designed to excel in applications such as lumber yards, construction sites, and heavy-duty manufacturing facilities. When you need to turn productivity up a notch, you can count on the Lithium Large Electric Pneumatic.
Specifications
For more detailed, product specific specification data, select an individual model number from the chart below.
| Model | Load Capacity (lbs./kgs.) | Maximum Travel Speed - Full Load (mph) | Lifting Speed - Full Load (fpm) | Gradeability - Maximum - Full Load | Basic Right-Angle Stacking Aisle Width (in.) |
|---|---|---|---|---|---|
| 9FBZ60U | 13500 (6000) | 11.6 (19) | 85 (435) | 608 (12) | 150.9 (3835) |
| 9FBZ70U | 15500 (7000) | 11.6 (18.5) | 82 (420) | 5.7 (10) | 152.9 (3885) |
| 9FBZ80U | 17500 (8000) | 11.3 (18) | 73 (360) | 5.1 (9) | 154.6 (3925) |
Performance Data
Model
9FBZ60ULoad Capacity (lbs./kgs.)
13500 (6000)
Maximum Travel Speed - Full Load (mph)
11.6 (19)
Lifting Speed - Full Load (fpm)
85 (435)
Gradeability - Maximum - Full Load
608 (12)
Basic Right-Angle Stacking Aisle Width (in.)
150.9 (3835)
Model
9FBZ70ULoad Capacity (lbs./kgs.)
15500 (7000)
Maximum Travel Speed - Full Load (mph)
11.6 (18.5)
Lifting Speed - Full Load (fpm)
82 (420)
Gradeability - Maximum - Full Load
5.7 (10)
Basic Right-Angle Stacking Aisle Width (in.)
152.9 (3885)
Model
9FBZ80ULoad Capacity (lbs./kgs.)
17500 (8000)
Maximum Travel Speed - Full Load (mph)
11.3 (18)
Lifting Speed - Full Load (fpm)
73 (360)
Gradeability - Maximum - Full Load
5.1 (9)
Basic Right-Angle Stacking Aisle Width (in.)
154.6 (3925)
