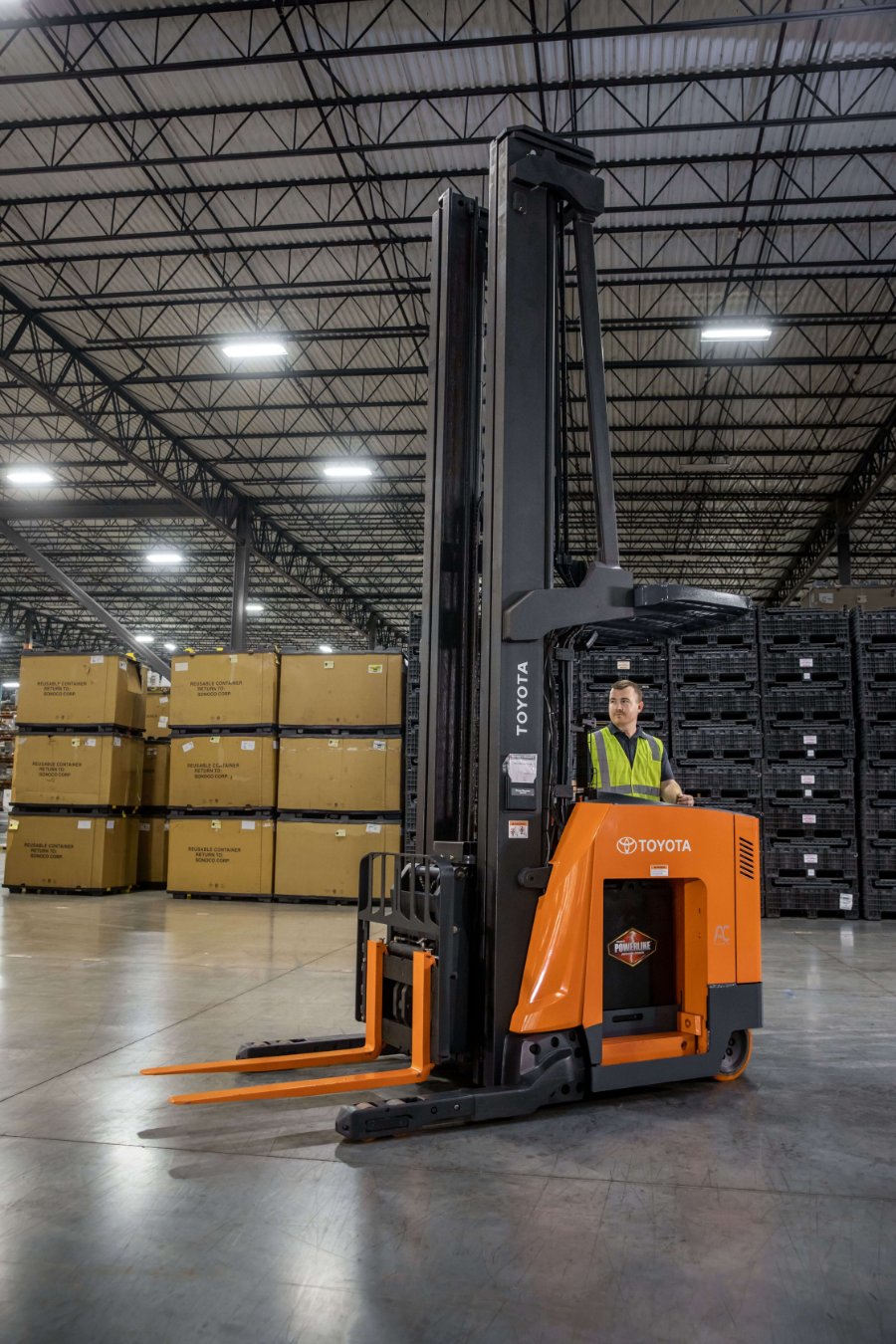

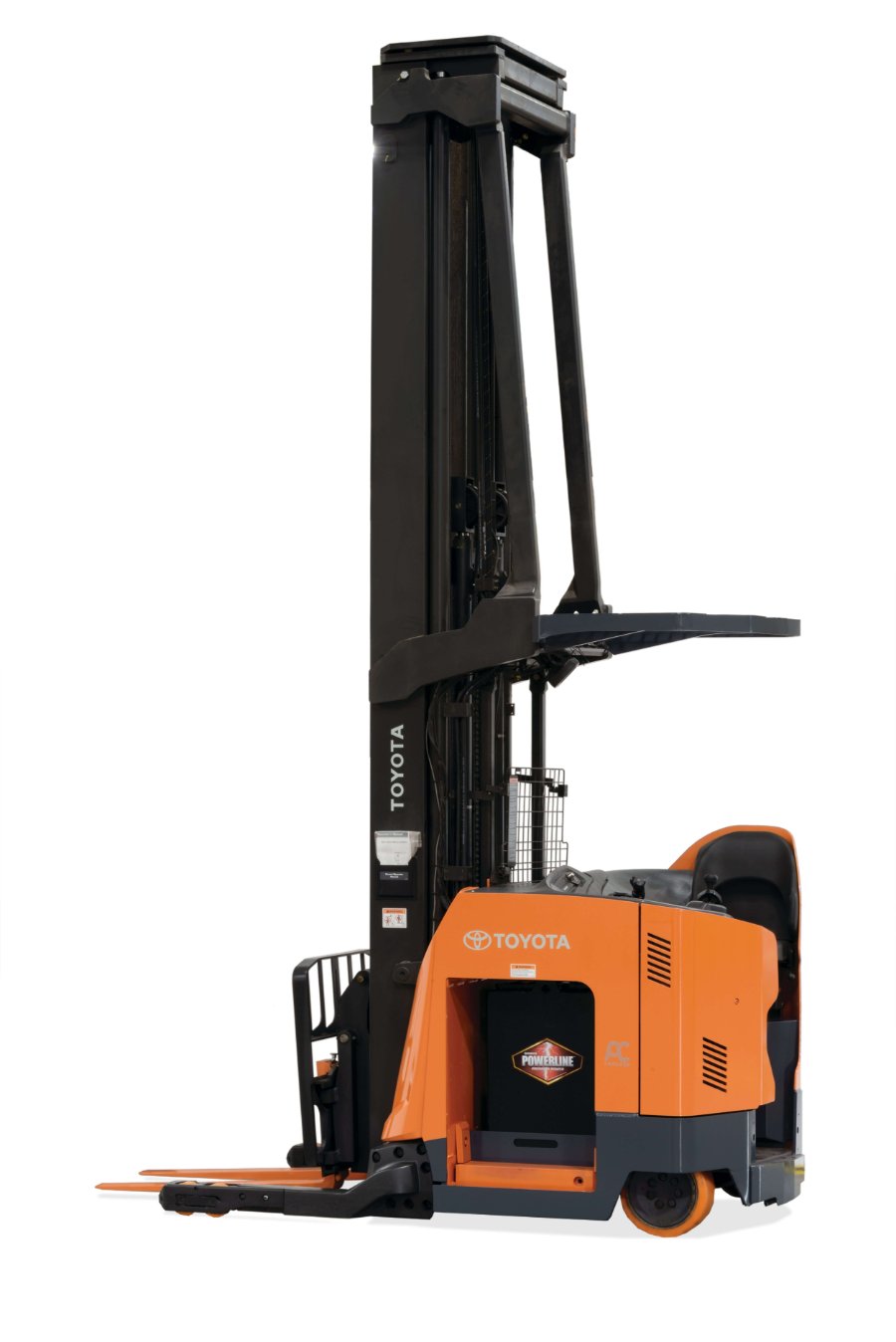

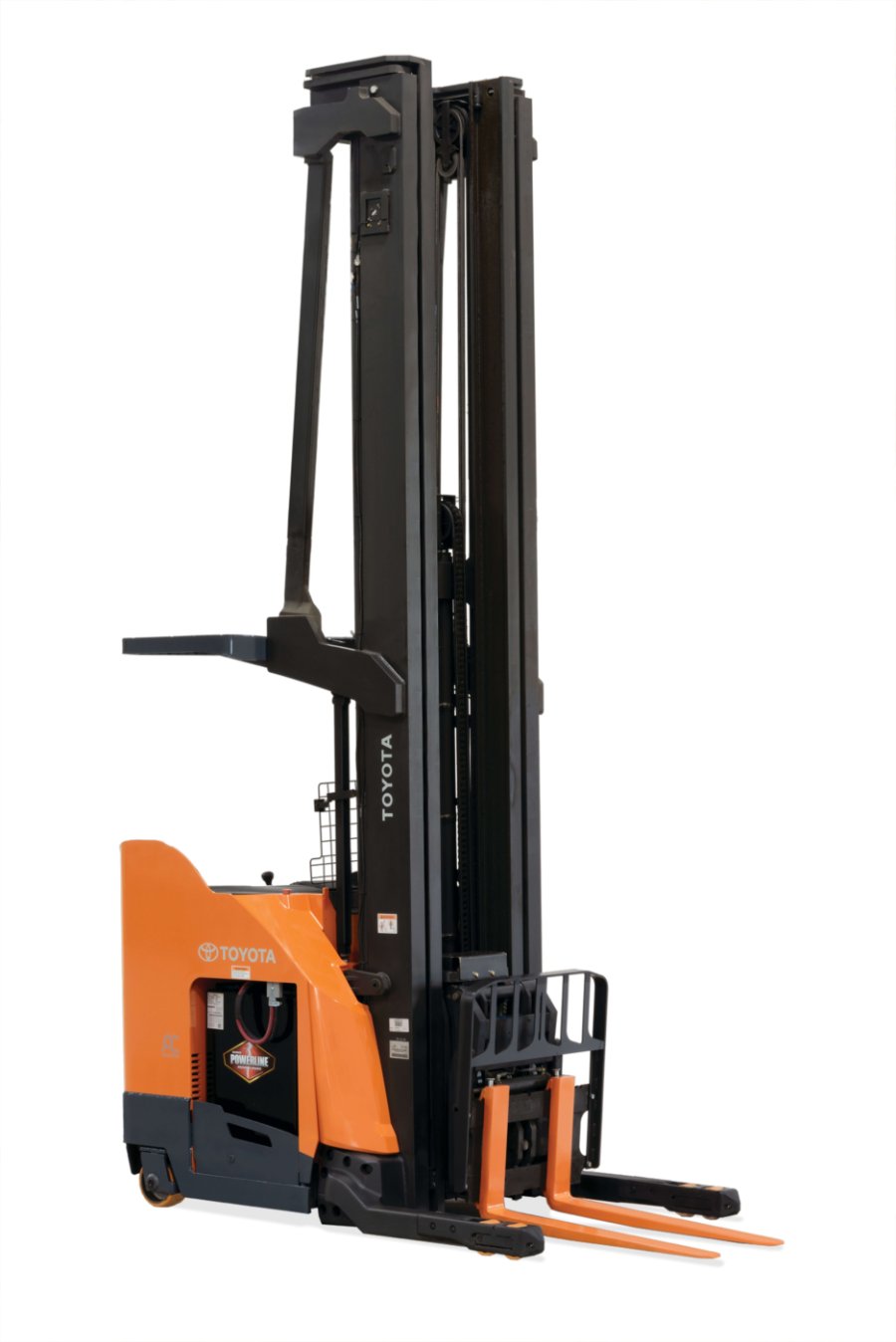

    High-Capacity Reach Truck

    3,200-4,500 lb. Lifting Capacity

    Your fast-paced warehouse environment gets a workout day-in and day-out. When it comes to moving and storing products, the last thing you need is limitations. Keeping up with evolving throughput and storage density demands while managing fluctuating SKU counts presents challenges for warehouse managers and operators. Toyota’s High-Capacity Reach Truck enables you to reach higher, work smarter, and be comfortably productive regardless of the assignment. For tall tasks and heavy orders, you need the Toyota High-Capacity Reach Truck.

    Apply For Financing Request A Quote
    Request Rental Quote

    Features

    Efficiency to Keep You Moving

    Moving from pick to pick as quickly and efficiently as possible is the name of the game, and the Toyota High-Capacity Reach Truck delivers. Its powerfully efficient AC Drive and Lift Motors offer superior acceleration, travel, and lift/lower speeds to maximize throughput while minimizing downtime. Regenerative lowering and plugging return energy to the battery when lowering the forks and plugging and coasting for more efficient operation and reduced energy costs.
    Intelligently Built, Comfortable Productive

    The High-Capacity Reach Truck’s intelligent design empowers operators to complete tasks confidently and efficiently, shift after shift. The multifunction handle allows for simultaneous use of the hydraulic functions and travel in one intuitive and ergonomic design. Rigid mast construction and an innovative suspension system help minimize sway for precise load and handling at maximum lift heights. The A-frame and caster steered idler reduces caster snap when backing away from a rack and during braking and cornering. An inertial dampener minimizes mast sway when right angle stacking at high lift heights for exceptional control. This lift also includes a high-visibility overhead guard, electric horn, emergency power disconnect switch, and anti-static ground strap.
    Technology at Your Fingertips

    The High-Capacity Reach Truck’s impressive lift height is matched equally by its ingenuity. The standard 7” touchscreen display puts key information, programming, and diagnostic capabilities right at your fingertips.



    For extra assistance when working in tall racking, the optional carriage-mounted camera system feeds video of the forks and pallet to the display for optimal control and precision. Optional Acculaser technology projects a light beam where the forks are positioned. The height and tilt indicator shows relative mast and fork positioning on the touchscreen display for even more precise load handling. Features include:



    • Hour Meter

    • Time and Date

    • Programmable Performance

    • Reach/Retract and Coast Control

    • Weight Display

    • Optional Camera Display

    • Optional Tilt/Height Indicator

    Powering You Toward a Sustainable Future

    At Toyota, we understand how important it is to keep your operation running at peak performance. When utilizing electric forklifts in your operation, you need a powerful, reliable, and sustainable solution that will continue to power your operation forward, year after year. Enter Toyota’s Lithium-ion batteries. Utilizing a patented design and electrolyte technology to increase your productivity, you’ll never have to worry about losing voltage or performance. You can rely on Toyota’s knowledgeable and dedicated team to support your energy needs.

    Specifications

    For more detailed, product specific specification data, select an individual model number from the chart below.

    Model Load Capacity (lbs./kgs.) Maximum Travel Speed - Full Load (mph) Lifting Speed - Full Load (fpm) Gradeability - Maximum - Full Load
    RF1-HC1X45 4500 6.5 90 5
    RF1-HC1Z45 4500 6.5 90 5
    RF1-HC2X32 3200 6.5 100 5
    RF1-HC2Z32 3200 6.5 100 5

    Performance Data

    Model

    RF1-HC1X45

    Load Capacity (lbs./kgs.)

    4500

    Maximum Travel Speed - Full Load (mph)

    6.5

    Lifting Speed - Full Load (fpm)

    90

    Gradeability - Maximum - Full Load

    5

    Model

    RF1-HC1Z45

    Load Capacity (lbs./kgs.)

    4500

    Maximum Travel Speed - Full Load (mph)

    6.5

    Lifting Speed - Full Load (fpm)

    90

    Gradeability - Maximum - Full Load

    5

    Model

    RF1-HC2X32

    Load Capacity (lbs./kgs.)

    3200

    Maximum Travel Speed - Full Load (mph)

    6.5

    Lifting Speed - Full Load (fpm)

    100

    Gradeability - Maximum - Full Load

    5

    Model

    RF1-HC2Z32

    Load Capacity (lbs./kgs.)

    3200

    Maximum Travel Speed - Full Load (mph)

    6.5

    Lifting Speed - Full Load (fpm)

    100

    Gradeability - Maximum - Full Load

    5
