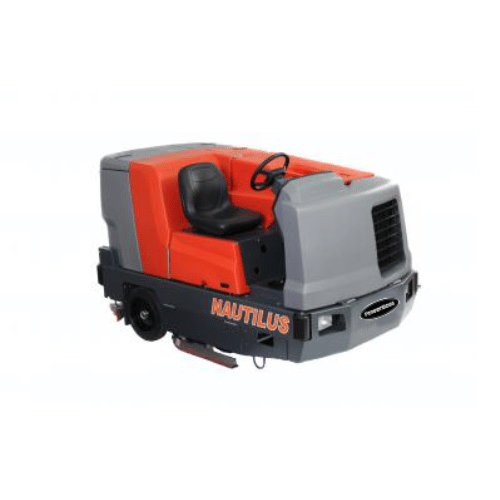

Model Nautilus

Nautilus features all-steel construction, stainless-steel scrub decks, exceptional vacuum recovery, and user-friendly controls. Its ability to tackle large areas quickly and efficiently makes it ideal for warehouses, factories, stadiums, airports, and logistics centers.

Apply For Financing Request A Quote

Request Rental Quote

Features

Nautilus Features:

45” Main Scrubbing Path
60”/62” w/Side Scrub or Sweep
105 Gallon Solution/ 105 Gallon Recovery Tank Capacity
Kubota – Gasoline, LPG, or Diesel Engine
TGT (Thermal Green Technology) – Onboard Hot Water Generation
1-Touch Scrubbing Features
Stainless Steel Scrubbing Deck and Debris Hopper
Up to 400 lbs. of Scrubbing Down Pressure
No Tools Change Brushes and Squeegees
Agricultural Grade Steel Frame
Industry Leading Machine and Engine Warranty

Specifications

Propelling System

Engine-Gasoline - Gross Intermittent Power

57 hp / 3600 rpm

Engine-Gasoline - PowerBoss Governed Power

40.5 hp / 2400 rpm

Gradeability - Working (cleaning)

8 degrees / 14%

Engine-Gasoline (1.5 L)

1.5 liter Kubota WG1605G

Engine-LPG

1.5 liter Kubota WG1605L

Engine-LPG - Gross Intermittent Power

55 hp / 3600 rpm

Engine-LPG - PowerBoss Governed Power

39.4 hp / 2400 rpm

Engine-Diesel

1.5 liter Kubota V1505

Engine-Diesel - Gross Intermittent Power

24.8 hp / 2300 rpm

Engine-Diesel - PowerBoss Governed Power

24.8 hp / 2300 rpm

Gradeability - Transport at Gross Weight

10 degrees /17.45%

Cleaning System Specifications

Minimum Aisle Turn

107.7 in / 2735.58 mm

Cleaning Path With Scrubbing Side Brush

60 in / 1,524 mm

Cleaning Path with Sweeping Side Brush

62 in / 1,574.8 mm

Brush Speed

425 rpm

Brush Down Pressure (up to)

400 lb/181.4 kg

Brush Diameter (2)

12 in/300 mm

Disc Main Brush Speed

225 rpm

Disc Main Brush - Scrub Brush Diameter

(3) 16 inch / 406.4 mm

Side Brush Speed

200 rpm

Solution Tank

105 gal / 397.4 L

Recovery Tank

105 gal / 397.4 L

Demisting Chamber

17 gal / 64.3 L

Debris Hopper Volume Capacity

2.09 cu ft. /15.6 gallons

Scrubbing Fan Speed

11,500 rpm

Scrubbing Fan Water Lift

35 in / 889 mm

Cleaning Path

45 in / 1,143 mm

Exterior Dimensions

Overall Width

53 in / 135 cm

Overhead Guard Height

83.5 in / 2,120.9 mm

Turning Radius

107.7″

Overall Length (in.)

95 in / 2,413 mm

Truck Weights

Weight (empty)

3250 lb / 1,474.1 kg

Weight (GVW)

4800 lb / 2,177.2 kg

Tires

Size - Front

16″ x 6″ molded

Size - Rear

18″ x 5″ press-on

Resources

Download Brochure
