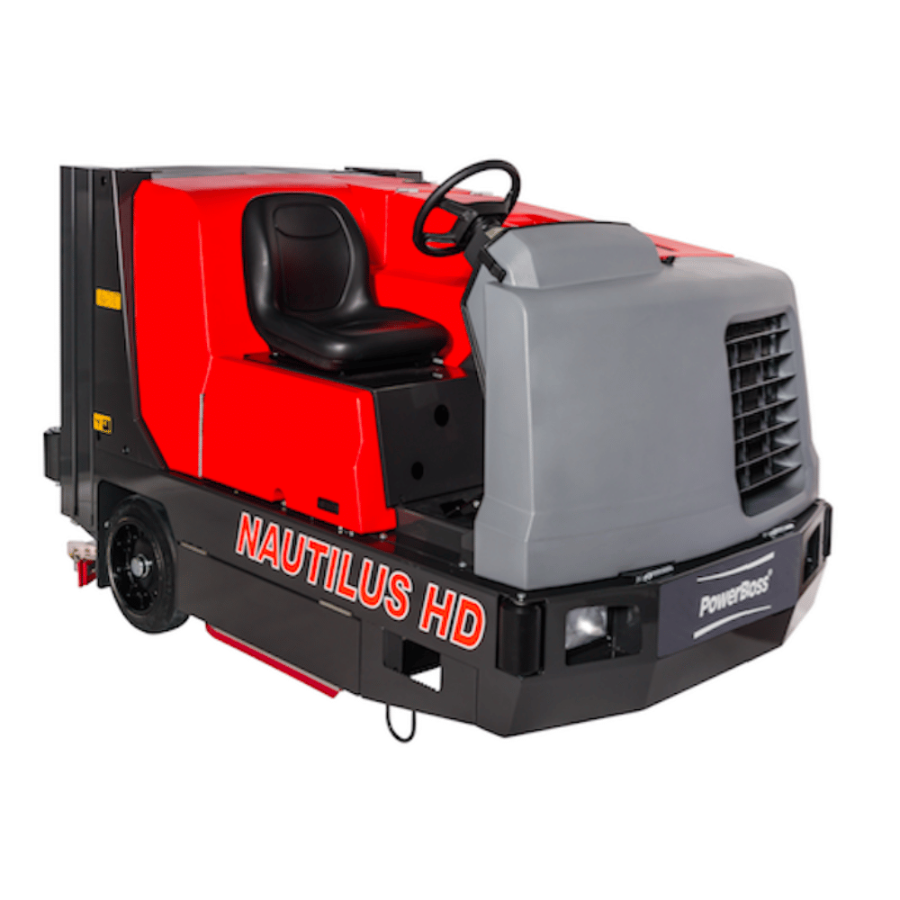

Model Nautilus HD

Nautilus HD features heavy-duty steel construction, stainless-steel scrubbing decks, and an optional onboard hot-water cleaning system. Perfect for manufacturing plants, distribution centers, and industrial facilities requiring aggressive scrubbing power and superior debris management.

Industrial Scrubber 45-60” Cleaning Path
Cast Iron Kubota LPG, Gas, or Diesel Engine

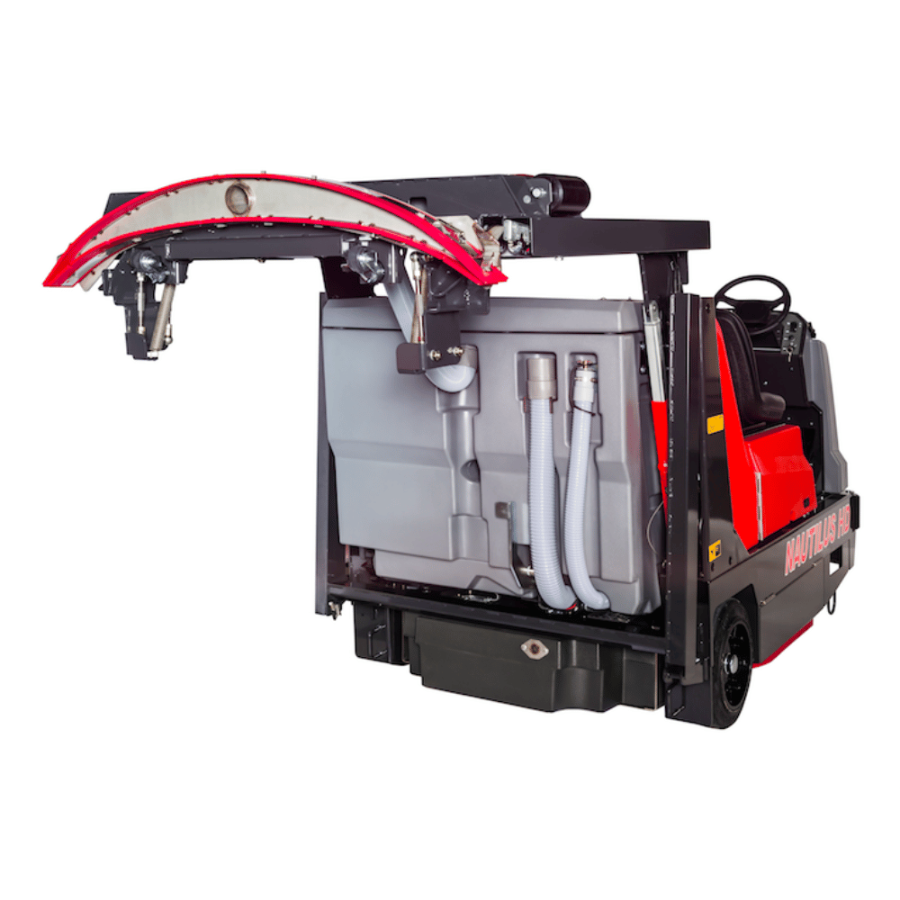

Hands Free High 60” High Dump Debris Hopper
Available with TGT: The Industry’s only onboard self-generating hot water scrubbing technology

Apply For Financing Request A Quote

Request Rental Quote

Features

Key Features

45” Main Scrubbing Path
60”/62” w/Side Scrub or Sweep
95 Gallon Solution/ 95 Gallon Recovery Tank Capacity
Kubota – Gasoline, LPG, or Diesel Engine
TGT (Thermal Green Technology) – Onboard Hot Water Generation
1-Touch Scrubbing Features
60” Variable Debris Hopper Empty Height
3.89 ft^3 debris hopper capacity
Stainless Steel Scrubbing Deck
Independent Lifting Squeegee and Debris Hopper
Up to 400 lbs. of Scrubbing Down Pressure
No Tools Change Brushes and Squeegees
Agricultural Grade Steel Frame
Industry Leading Machine and Engine Warranty

Unlock the Power of Clean with Onboard Hot Water Generation: TGT

Clean“Chemical Free” on a variety of cleaning applications
Enhances and excellerates overall cleaning results
Compliments or contributes to green or sustainable cleaning practices
No additional cost – the heat is generated from within the machine

Specifications

Propelling System

Engine-Gasoline - Gross Intermittent Power

57 hp / 3600 rpm

Engine-Gasoline - PowerBoss Governed Power

40.5 hp / 2400 rpm

Gradeability - Working (cleaning)

8 degrees / 14%

Ground Clearance (transport)

3 in / 80 mm

Engine-Gasoline (1.5 L)

1.5 liter Kubota WG1605G

Engine-LPG

1.5 liter Kubota WG1605L

Engine-LPG - Gross Intermittent Power

55 hp / 3600 rpm

Engine-LPG - PowerBoss Governed Power

39.4 hp / 2400 rpm

Engine-Diesel

1.5 liter Kubota V1505

Engine-Diesel - Gross Intermittent Power

24.8 hp / 2300 rpm

Engine-Diesel - PowerBoss Governed Power

24.8 hp / 2300 rpm

Gradeability - Transport at Gross Weight

10 degrees /17.45%

Cleaning System Specifications

Minimum Aisle Turn

107.7 in / 2735.58 mm

Scrubbing Brush Diameter

20 in / 508 mm

Cleaning Path With Scrubbing Side Brush

60 in / 1,524 mm

Cleaning Path with Sweeping Side Brush

62 in / 1,574.8 mm

Brush Speed

425 rpm

Brush Down Pressure (up to)

400 lb/181.4 kg

Brush Diameter (2)

12 in/300 mm

Side Brush Speed

16 in / 406.4 mm

Solution Tank

90 gal / 340.6 L

Recovery Tank

90 gal / 340.6 L

Demisting Chamber

15 gal / 56.7 L

Debris Hopper Volume Capacity

3.89 cu ft./29 gallons

Scrubbing Fan Speed

11,500 rpm

Scrubbing Fan Water Lift

35 in / 889 mm

Cleaning Path

45 in / 1,143 mm

Exterior Dimensions

Overhead Guard Height

83.5 in / 2,120.9 mm

Overall Length (in.)

95 in / 2,413 mm

Frame

55 in / 1,397 mm

Frame Rear Squeegee

56 in / 1,422.4 mm

Frame with Side Brush

65.5 in / 1,663.7 mm

Height without Overhead Guard

60.5 in / 1,536.7 mm

Truck Weights

Weight (empty)

3250 lb / 1,474.1 kg

Weight (GVW)

4800 lb / 2,177.2 kg
