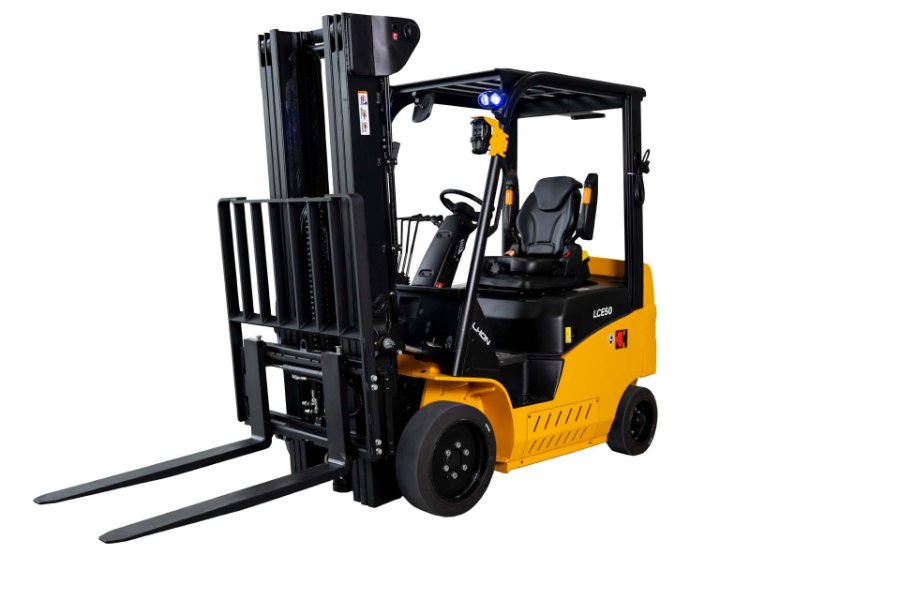

Model LCE50-65S
LCE50-65S
5,000-6,500 lb. Capacity Integrated Lithium-Ion Four-Wheel Cushion Electric Forklift
Productivity that rivals internal combustion. Savings that start on day 1.
Looking to electrify your internal combustion fleet? This is the solution. The LCE50-65S is designed for high productivity in warehouse and logistics operations. Big Joe’s purpose-built, integrated Lithium-ion battery and powertrain deliver high performance in a package that was designed with operator comfort and productivity in mind.
Specifications
General Data
Power Type
Battery
Operator Position
Seated Rider
Tire Type
Cushion
Wheels (x=driven)
2x / 2
Load Capacity (lbs./kgs.)
5000-6500
Load Center
24 (600)
Auxiliary Hydraulic Function Specifications
Max. Operating Pressure (psi)
2750
Exterior Dimensions
Free-Lift
57.8-58.7
Tilt Range
6 / 5
Length to Fork Face
91.7-95.6
Overall Width
43-44.2
Overhead Guard Height
83.1
Turning Radius
78.4-81.1
Basic Right-Angle Stacking Aisle Width
96.3-99.3
Performance
Lifting Speed - Full Load (fpm)
98-120
Lifting Speed - No Load (fpm)
124-126
Lowering Speed - Full Load (fpm)
98
Lowering Speed - No Load (fpm)
98
Gradeability - Maximum - Full Load
15-17
Gradeability - Maximum - No Load
25-30
Maximum Travel Speed - Full Load (mph)
10.5-10.6
Maximum Travel Speed - No Load (mph)
10.6-11.2
Truck Weights
Total Weight (lb.)
9240-10850
Tires
Size - Front
21x8-15
Size - Rear
16x6-10.5
Wheelbase (in.)
58.5
Tread Width (in.)
36.6
Underclearance -Center of Wheelbase (in.)
4.3
Brake - Service / Parking
Hydraulic/ Mechanical
Tread Width - Rear (in.)
35.6
Battery Features
Voltage/Capacity
80 / 460
