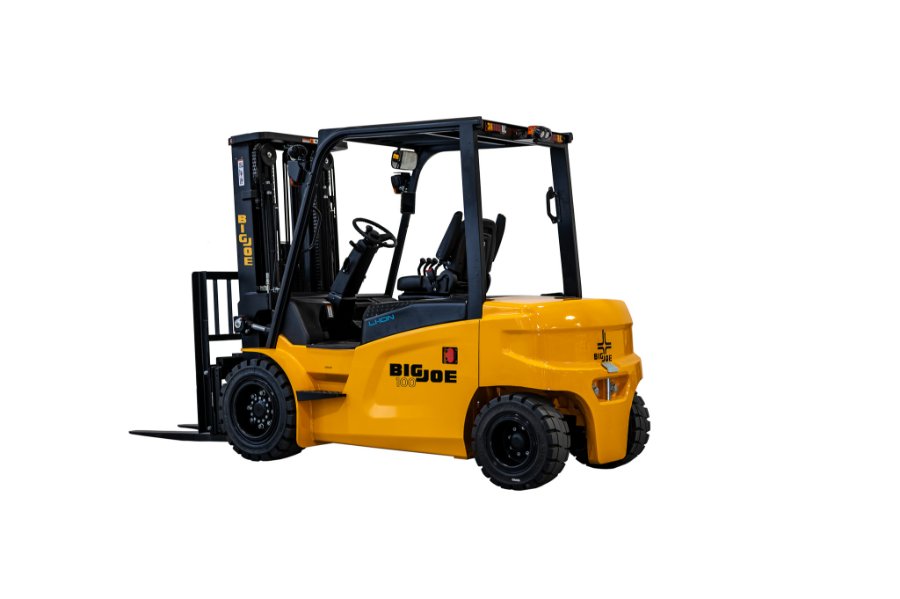

Model LPE80/LPE100S

8,000-10,000 lb. Capacity Integrated Lithium-Ion Four-Wheel Pneumatic Electric Forklift

Big returns with integrated lithium-ion.

Ready to stop spending money on fuel and expensive engine maintenance? The LPE80-100S series is equipped with Big Joe’s purpose-built, integrated Lithium-ion battery, so operation is smooth, quiet and cost-effective. A single, brushless AC drive motor provides precise control. The long wheelbase and wide, pneumatic-shaped solid tires contribute to a stable ride. The LPE80-100S series is the ideal electric solution for light to moderate duty applications that need to move those larger loads. With standard onboard charging and over-the-air telematics, going electric with Big Joe is an easy choice.

Apply For Financing Request A Quote

Request Rental Quote

Specifications

General Data

Power Type

Battery

Operator Position

Seated Rider

Tire Type

Pneumatic-Shaped Solid

Wheels (x=driven)

2x / 2

Load Capacity (lbs./kgs.)

8000-10000

Load Center

24 (600)

Auxiliary Hydraulic Function Specifications

Max. Operating Pressure (psi)

2750

Exterior Dimensions

Free-Lift

44.5

Fork Size (T x W x L)

2.2 x 6 48

Tilt Range

6 / 5

Length to Fork Face

114.2

Overall Width

Mast Lowered Height

Mast Extended Height

232

Overhead Guard Height

88.6

Turning Radius

105.3

Load Distance

21.8

Basic Right-Angle Stacking Aisle Width

127.1

Performance

Lifting Speed - Full Load (fpm)

Lifting Speed - No Load (fpm)

88.6

Lowering Speed - Full Load (fpm)

88.6

Lowering Speed - No Load (fpm)

100.4

Drawbar Pull - Max. - Full Load (fpm)

26000

Drawbar Pull - Max. - No Load (fpm)

26000

Gradeability - Maximum - Full Load

Gradeability - Maximum - No Load

Maximum Travel Speed - Full Load (mph)

9.9

Maximum Travel Speed - No Load (mph)

11.2

Truck Weights

Total Weight (lb.)

14960-15400

Tires

Size - Front

28 x 12.5-15

Size - Rear

23 x 10-12

Wheelbase (in.)

78.7

Tread Width (in.)

48.4

Underclearance -Center of Wheelbase (in.)

5.9

Brake - Service / Parking

Dry Drum/ Mechanical

Tread Width - Rear (in.)

41.7

Battery Features

Voltage/Capacity

80 / 460
