Features

Product Highlights

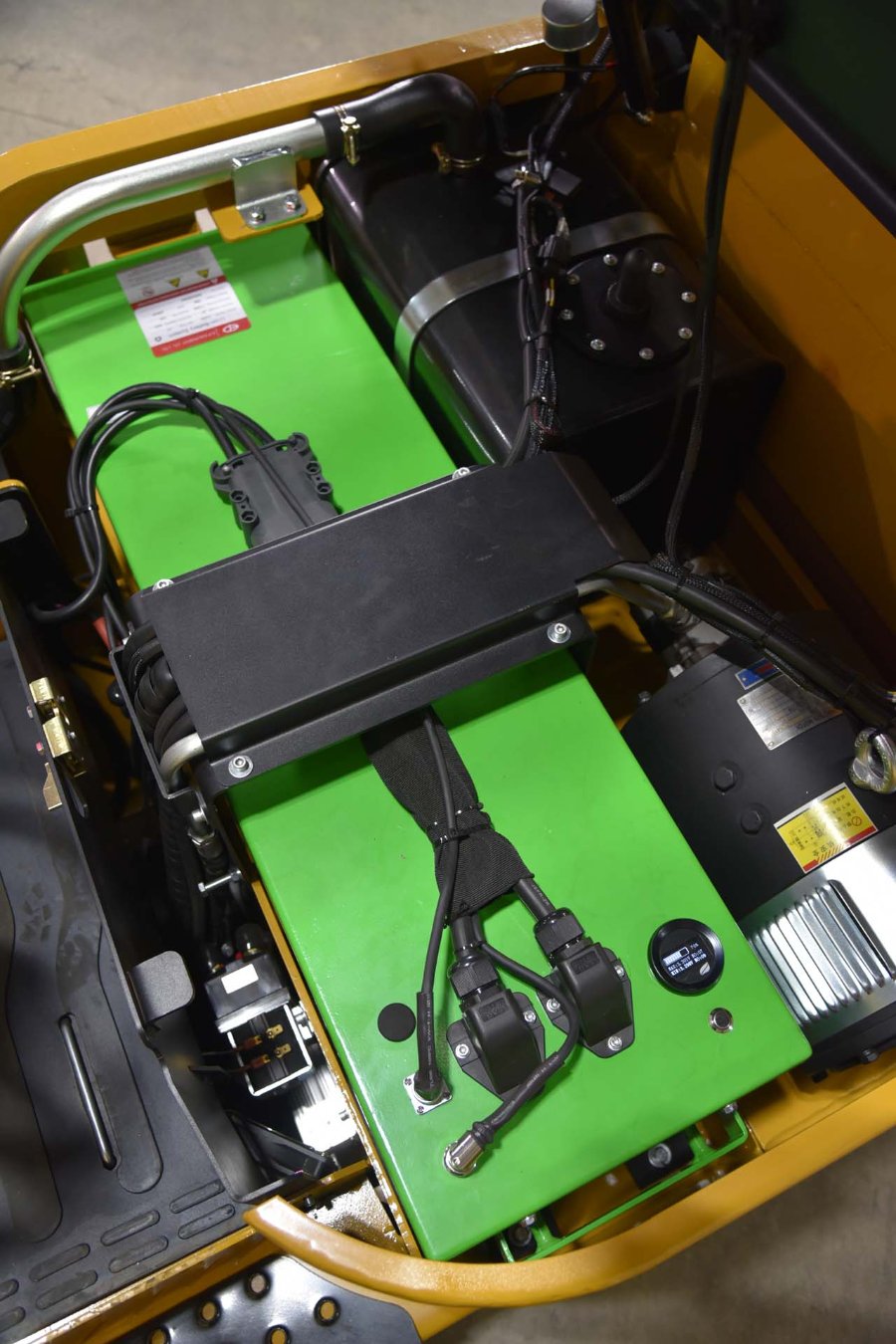

  • UL-Recognized Integrated Lithium-ion 17.3kWh Battery
  • Telemetry Monitoring System with Over-the-Air Updating
  • Fully-Electric and Maintenance-Free Service Brakes
  • Electromagnetic Parking Brake
  • 48V AC Drive Motor
  • Large Step for Ease of Ingress/Egress
  • Low Dash for Excellent Visibility

Specifications


General Data
Power Type
Battery
Operator Position
Seated Rider
Tire Type
Pneumatic-Solid Shaped
Wheels (x=driven)
2x / 2
Load Capacity (lbs./kgs.)
4000
Load Center
24 (600)
Auxiliary Hydraulic Function Specifications
Max. Operating Pressure (psi)
2750
Exterior Dimensions
Free-Lift
65
Fork Size (T x W x L)
1.6 x 4.8 x 42
Tilt Range
6 / 6
Length to Fork Face
86.6
Overall Width
42.5
Overhead Guard Height
81.9
Turning Radius
81.9
Load Distance
15.9
Basic Right-Angle Stacking Aisle Width
97.8
Performance
Lifting Speed - Full Load (fpm)
55.1
Lifting Speed - No Load (fpm)
82.6
Lowering Speed - Full Load (fpm)
84.6
Lowering Speed - No Load (fpm)
88.6
Gradeability - Maximum - Full Load
10.5
Gradeability - Maximum - No Load
14
Maximum Travel Speed - Full Load (mph)
6.5
Maximum Travel Speed - No Load (mph)
8.7
Truck Weights
Total Weight (lb.)
7892
Tires
Size - Front
200/50-10
Size - Rear
5-8
Wheelbase (in.)
57.9
Tread Width (in.)
35.8
Underclearance -Center of Wheelbase (in.)
4.1
Brake - Service / Parking
Regenerative / Electromagnetic
Tread Width - Rear (in.)
36.2
Battery Features
Voltage/Capacity
48 / 360
