    80V Electric Pneumatic Forklift

    4,000-17,500 lb. Lifting Capacity

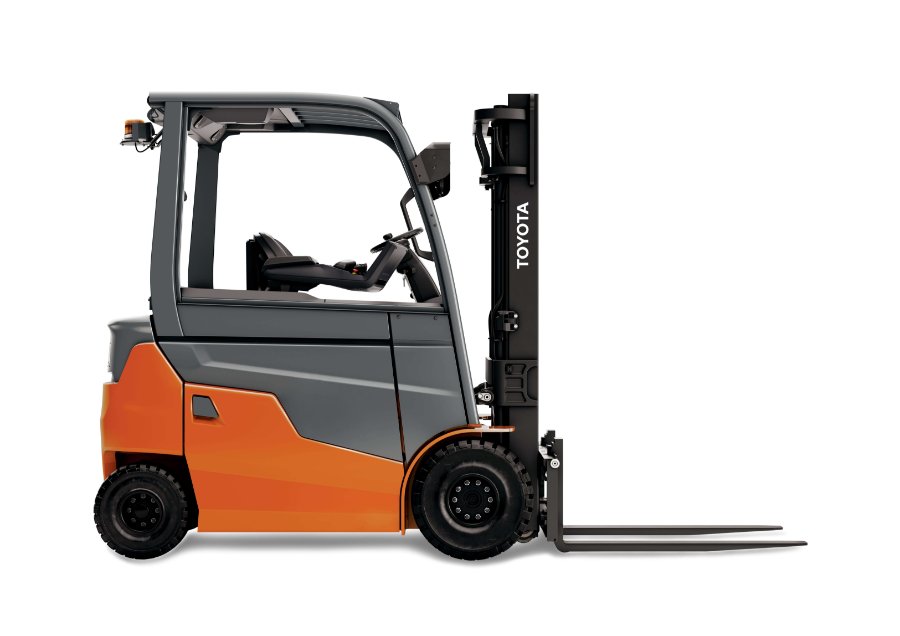

    Want to maintain an all-electric fleet, but need a rugged, outdoor workhorse? Look no further than Toyota’s 80V Electric Pneumatic Counterbalance Forklift. These electric powerhouses combine the power, durability, and reliability of internal combustion trucks with the ergonomics and speed of electric forklifts. With a capacity ranging from 4,000 - 17,500 lbs., these machines are ready to tackle any challenge, whether you’re operating indoors or outdoors.

    Apply For Financing Request A Quote
    Request Rental Quote

    Features

    Advanced Technologies at your Fingertips

    Knowledge and information boost your productivity.

    Toyota's 80V electric air forklifts come equipped with a multi-function display that provides key information such as a warning of run time and battery capacity. Standard speed control and performance modes allow you to select energy consumption, acceleration and regenerative braking allowing you to maximise the truck's performance for your operation while balancing performance and runtime, leading to greater efficiency. Built-in diagnostics with error code displays enable on-screen troubleshooting to quickly diagnose any issues and increase uptime.
    Designed for the Operator

    Designed with the operator in mind, the 80V Pneumatic Electric Pneumatics' operator compartment comes equipped with features to help you get your job done quickly and efficiently. Overall noise and vibration levels are also much lower, resulting in reduced stress and fatigue. The fully floating cab and full suspension seat significantly reduce shock and vibration for productive and comfortable operation.*

    *only available on 8FBM/9FBM(K)/9FBH models
    Electric Pneumatic Ergonomics

    The Toyota 80V electric pneumatic forklift comes with several features to help operators in their work environment. Mini-lever controls and armrest provide more ergonomic operation to decrease fatigue and increase productivity. The cab-style operator's compartment features a low-rise, tilt-and-telescoping steering column dashboard with electric power steering for excellent visibility, legroom and comfort. Other ergonomic features include:*

    • Vinyl seat with ORS (Operator Restraint System) full suspension

    • Retractable seat belt

    • Heavy-duty non-slip mat

    • Tilt steering column with memory



    With a built-in multi-function digital display, the 80V electric pneumatic forklift provides truck information at your fingertips. The low-clearance dashboard and wide-visibility mast provide operators with a clean line of sight during loading and unloading. A tilt-to-memory steering column and adjustable seat give operators a comfortable, personalized space when working during a shift.**


    ** only available on 8FB/8FBH/8FBJ models

    Specifications

    For more detailed, product specific specification data, select an individual model number from the chart below.

    Model Basic Right-Angle Stacking Aisle Width Lifting Speed - Full Load (fpm) Gradeability - Maximum - Full Load Maximum Travel Speed - Full Load (mph) Load Capacity (lbs./kgs.)
    05-9FBMK20T 104.1 90.6 23-31 11.8 4000
    05-9FBMK25T 104.1 90.6 20-29 11.8 5000
    05-9FBMK30T 105.4 78.7 17 11.8 6000
    05-8FBM40T 120.5 68.9 11.3 11 8000
    05-8FBM45T 121.1 68.9 9.5 11 9000
    05-8FBM50T 126.5 65 8.8 11 11000
    05-9FBH25T 110.6 78.7 18 11.8 5500
    05-9FBH30T 111.5 78.7 16 11.8 6500
    05-9FBM25T 110 90.6 19 11.8 5000
    05-9FBM30T 110.8 78.7 17 11.8 6000
    05-9FBM35T 111.8 72.8 15 11.8 7000
    8FB30 86 63 11 8.7 6000
    8FBJ35 94.5 53 15 8.1 7000
    9FBH80T - 63 5.2 10 17500
    9FBM60T 146 75 7 11 13000
    9FBM70T 146.5 71 6 11 15500
    9FBM80T 152 63 5.6 11 17500

    Performance Data

    Model

    05-9FBMK20T

    Basic Right-Angle Stacking Aisle Width

    104.1

    Lifting Speed - Full Load (fpm)

    90.6

    Gradeability - Maximum - Full Load

    23-31

    Maximum Travel Speed - Full Load (mph)

    11.8

    Load Capacity (lbs./kgs.)

    4000

    Model

    05-9FBMK25T

    Basic Right-Angle Stacking Aisle Width

    104.1

    Lifting Speed - Full Load (fpm)

    90.6

    Gradeability - Maximum - Full Load

    20-29

    Maximum Travel Speed - Full Load (mph)

    11.8

    Load Capacity (lbs./kgs.)

    5000

    Model

    05-9FBMK30T

    Basic Right-Angle Stacking Aisle Width

    105.4

    Lifting Speed - Full Load (fpm)

    78.7

    Gradeability - Maximum - Full Load

    17

    Maximum Travel Speed - Full Load (mph)

    11.8

    Load Capacity (lbs./kgs.)

    6000

    Model

    05-8FBM40T

    Basic Right-Angle Stacking Aisle Width

    120.5

    Lifting Speed - Full Load (fpm)

    68.9

    Gradeability - Maximum - Full Load

    11.3

    Maximum Travel Speed - Full Load (mph)

    11

    Load Capacity (lbs./kgs.)

    8000

    Model

    05-8FBM45T

    Basic Right-Angle Stacking Aisle Width

    121.1

    Lifting Speed - Full Load (fpm)

    68.9

    Gradeability - Maximum - Full Load

    9.5

    Maximum Travel Speed - Full Load (mph)

    11

    Load Capacity (lbs./kgs.)

    9000

    Model

    05-8FBM50T

    Basic Right-Angle Stacking Aisle Width

    126.5

    Lifting Speed - Full Load (fpm)

    65

    Gradeability - Maximum - Full Load

    8.8

    Maximum Travel Speed - Full Load (mph)

    11

    Load Capacity (lbs./kgs.)

    11000

    Model

    05-9FBH25T

    Basic Right-Angle Stacking Aisle Width

    110.6

    Lifting Speed - Full Load (fpm)

    78.7

    Gradeability - Maximum - Full Load

    18

    Maximum Travel Speed - Full Load (mph)

    11.8

    Load Capacity (lbs./kgs.)

    5500

    Model

    05-9FBH30T

    Basic Right-Angle Stacking Aisle Width

    111.5

    Lifting Speed - Full Load (fpm)

    78.7

    Gradeability - Maximum - Full Load

    16

    Maximum Travel Speed - Full Load (mph)

    11.8

    Load Capacity (lbs./kgs.)

    6500

    Model

    05-9FBM25T

    Basic Right-Angle Stacking Aisle Width

    110

    Lifting Speed - Full Load (fpm)

    90.6

    Gradeability - Maximum - Full Load

    19

    Maximum Travel Speed - Full Load (mph)

    11.8

    Load Capacity (lbs./kgs.)

    5000

    Model

    05-9FBM30T

    Basic Right-Angle Stacking Aisle Width

    110.8

    Lifting Speed - Full Load (fpm)

    78.7

    Gradeability - Maximum - Full Load

    17

    Maximum Travel Speed - Full Load (mph)

    11.8

    Load Capacity (lbs./kgs.)

    6000

    Model

    05-9FBM35T

    Basic Right-Angle Stacking Aisle Width

    111.8

    Lifting Speed - Full Load (fpm)

    72.8

    Gradeability - Maximum - Full Load

    15

    Maximum Travel Speed - Full Load (mph)

    11.8

    Load Capacity (lbs./kgs.)

    7000

    Model

    8FB30

    Basic Right-Angle Stacking Aisle Width

    86

    Lifting Speed - Full Load (fpm)

    63

    Gradeability - Maximum - Full Load

    11

    Maximum Travel Speed - Full Load (mph)

    8.7

    Load Capacity (lbs./kgs.)

    6000

    Model

    8FBJ35

    Basic Right-Angle Stacking Aisle Width

    94.5

    Lifting Speed - Full Load (fpm)

    53

    Gradeability - Maximum - Full Load

    15

    Maximum Travel Speed - Full Load (mph)

    8.1

    Load Capacity (lbs./kgs.)

    7000

    Model

    9FBH80T

    Basic Right-Angle Stacking Aisle Width

    -

    Lifting Speed - Full Load (fpm)

    63

    Gradeability - Maximum - Full Load

    5.2

    Maximum Travel Speed - Full Load (mph)

    10

    Load Capacity (lbs./kgs.)

    17500

    Model

    9FBM60T

    Basic Right-Angle Stacking Aisle Width

    146

    Lifting Speed - Full Load (fpm)

    75

    Gradeability - Maximum - Full Load

    7

    Maximum Travel Speed - Full Load (mph)

    11

    Load Capacity (lbs./kgs.)

    13000

    Model

    9FBM70T

    Basic Right-Angle Stacking Aisle Width

    146.5

    Lifting Speed - Full Load (fpm)

    71

    Gradeability - Maximum - Full Load

    6

    Maximum Travel Speed - Full Load (mph)

    11

    Load Capacity (lbs./kgs.)

    15500

    Model

    9FBM80T

    Basic Right-Angle Stacking Aisle Width

    152

    Lifting Speed - Full Load (fpm)

    63

    Gradeability - Maximum - Full Load

    5.6

    Maximum Travel Speed - Full Load (mph)

    11

    Load Capacity (lbs./kgs.)

    17500
