Features

Proven Power

Toyota's energy-efficient AC motor makes the Large Electric Forklift the perfect high-capacity solution for lifting and carrying heavy weights. This counterbalance forklift is an environmentally friendly and emission-free solution for sensitive applications. Smoother acceleration, increased uptime, and less frequent scheduled maintenance are also part of the package. Toyota's Large Electric Forklift speaks quietly, but it carries a heavy load.

Designed for Comfort

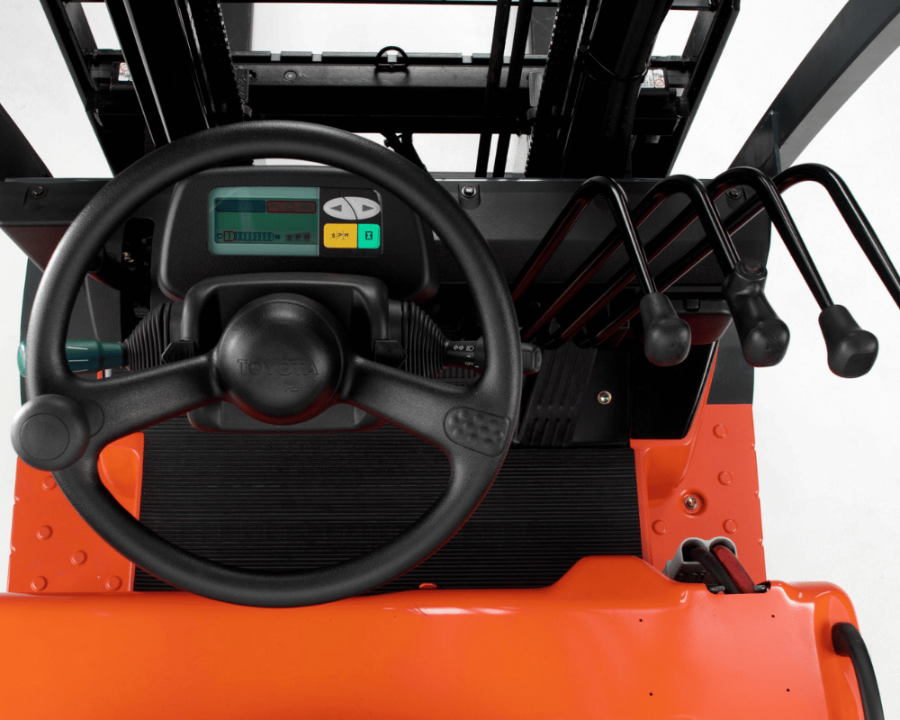

The operator compartment of the Large Electric is designed for the forklift to function as an extension of the operator's body. With intuitive and well-placed controls. Easy-to-read screens. And clear sight lines everywhere. Equally important, the operator's compartment is also designed for comfort, even during a long shift, with a premium seat, low entry and exit steps, and a heavy-duty non-slip mat to minimize noise, heat, and vibration.

Key Security Features

The safety features of the large electric forklift include Toyota's Active Stability System (SAS), ™ which automatically detects potentially unsafe conditions and activates additional safety features to increase operator protection and reduce damage to the product and forklift. This counterbalance forklift also comes with welded and laminated top protection pillars to provide maximum operator protection with superior entry/exit and visibility of the load. Additional features include:

  • Operator Presence Detection System (OPSS)

  • Key lowering interlock

  • Double-acting parking brake

  • Electric horn

Specifications

For more detailed, product specific specification data, select an individual model number from the chart below.

Model Load Capacity (lbs./kgs.) Maximum Travel Speed - Full Load (mph) Lifting Speed - Full Load (fpm) Gradeability - Maximum - Full Load Basic Right-Angle Stacking Aisle Width (in.)
7FBCU35 8000 8.4 (36V), 10.9 (48V) 51.2 (36V), 72.9 (48 V) 16 (36V), 22 (48V) 102.6
7FBCU45 10000 7.8 (36V), 10.9 (48V) 43 (36V), 57 (48V) 13 (36V), 18 (48V) 106.7
7FBCU55 12000 7.5 (36V), 9.3 (48V) 37 (36V), 53 (48V) 14 (36V), 20 (48V) 116.9

Performance Data

Model

7FBCU35

Load Capacity (lbs./kgs.)

8000

Maximum Travel Speed - Full Load (mph)

8.4 (36V), 10.9 (48V)

Lifting Speed - Full Load (fpm)

51.2 (36V), 72.9 (48 V)

Gradeability - Maximum - Full Load

16 (36V), 22 (48V)

Basic Right-Angle Stacking Aisle Width (in.)

102.6

Model

7FBCU45

Load Capacity (lbs./kgs.)

10000

Maximum Travel Speed - Full Load (mph)

7.8 (36V), 10.9 (48V)

Lifting Speed - Full Load (fpm)

43 (36V), 57 (48V)

Gradeability - Maximum - Full Load

13 (36V), 18 (48V)

Basic Right-Angle Stacking Aisle Width (in.)

106.7

Model

7FBCU55

Load Capacity (lbs./kgs.)

12000

Maximum Travel Speed - Full Load (mph)

7.5 (36V), 9.3 (48V)

Lifting Speed - Full Load (fpm)

37 (36V), 53 (48V)

Gradeability - Maximum - Full Load

14 (36V), 20 (48V)

Basic Right-Angle Stacking Aisle Width (in.)

116.9
