Features

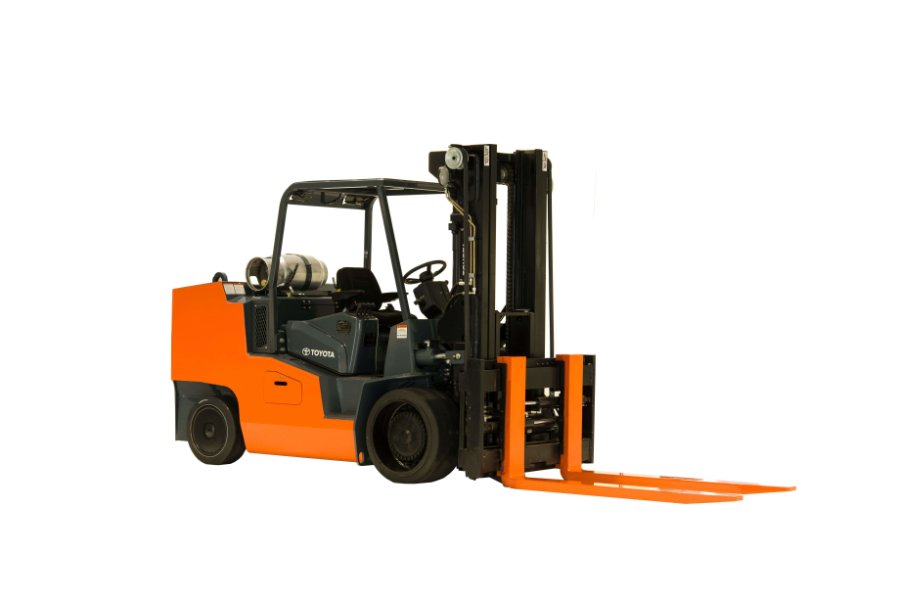

Toyota High-Capacity IC Cushion Forklift

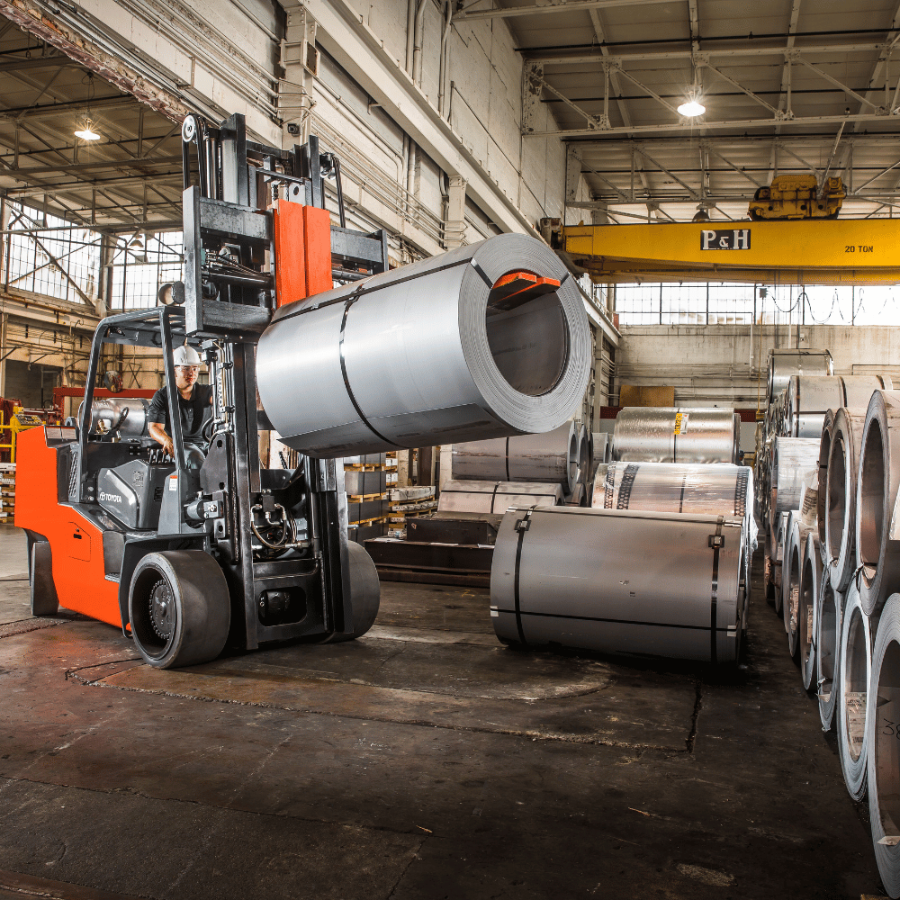

Our impressive THD power is now indoors. Think automotive and forging. Huge paper rolls. Steel and raw materials. All demand the reliable power that Toyota provides. With a 6-cylinder engine and rugged design, this beast can handle anything you throw at it.

Power at your Fingertips

That strength comes with plenty of support. An engine management system protects your forklift and keeps delivering the same high-performance work you expect. The digital instrument display keeps you aware of operating status. Standard hood-mounted hydraulic controls provide convenient, comfortable control of all functions for operators. And the high-visibility design helps keep operators aware of their surroundings while in operation.

Built Heavy Duty

A rigid welded chassis with heavy steel cross supports. Impact resistant side thrusters. The power of a V6 engine. A dana transmission with three forward and reverse speeds. And the engine diagnostics and support systems to back all that up. This indoor workhorse is built to last from the overhead guard all the way to the durable two-coat rust-inhibiting paint.

Engineered for Operators

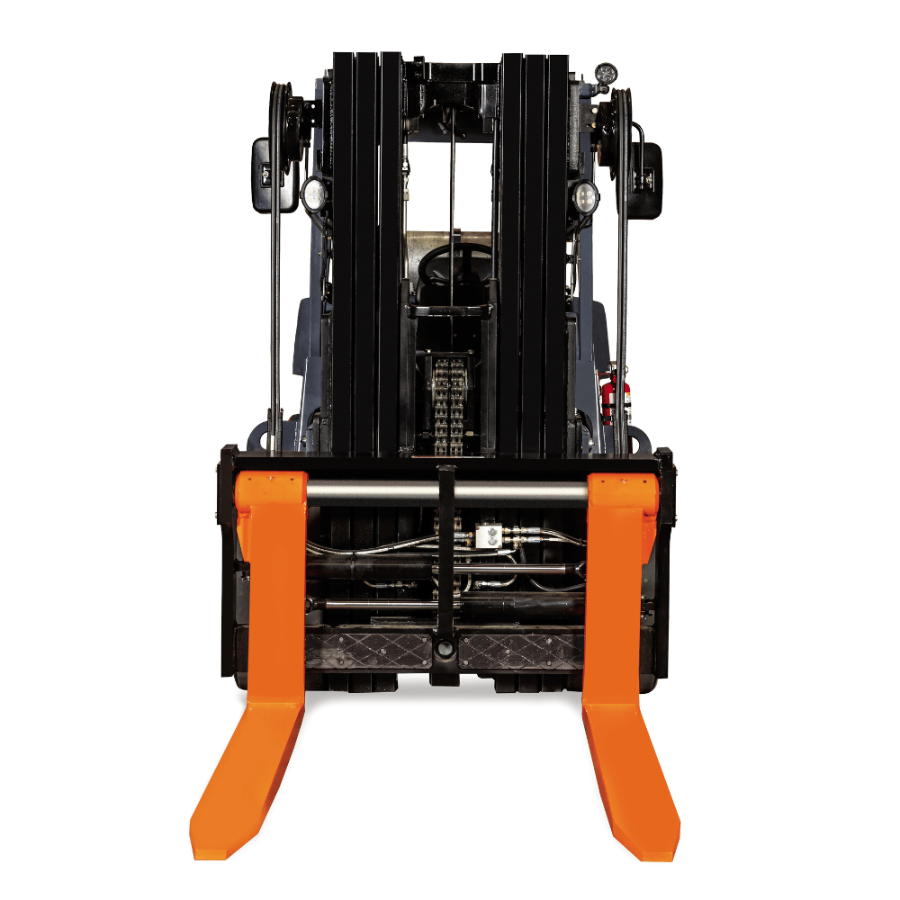

Advanced ergonomics keep operators comfortable while they work. Easily viewed gauges and auxiliary controls make monitoring performance intuitive and convenient. Add in a standard wide-view mast that ensures a wide field of  operator vision, and you have a comfortably powerful machine.

Specifications

For more detailed, product specific specification data, select an individual model number from the chart below.

Model Load Capacity (lbs./kgs.) Maximum Travel Speed - Full Load (mph) Lifting Speed - Full Load (fpm) Gradeability - Maximum - Full Load Basic Right-Angle Stacking Aisle Width (in.)
THDC1800-24 18000 14.3 50 30.5 140.67+Load
THDC1800-36 18000 14.3 46 27.4 144.30+Load
THDC2200-24 22000 14.3 46 25.2 144.30+Load
THDC2200B-24 22000 14.3 46 24.8 133.43+Load

Performance Data

Model

THDC1800-24

Load Capacity (lbs./kgs.)

18000

Maximum Travel Speed - Full Load (mph)

14.3

Lifting Speed - Full Load (fpm)

50

Gradeability - Maximum - Full Load

30.5

Basic Right-Angle Stacking Aisle Width (in.)

140.67+Load

Model

THDC1800-36

Load Capacity (lbs./kgs.)

18000

Maximum Travel Speed - Full Load (mph)

14.3

Lifting Speed - Full Load (fpm)

46

Gradeability - Maximum - Full Load

27.4

Basic Right-Angle Stacking Aisle Width (in.)

144.30+Load

Model

THDC2200-24

Load Capacity (lbs./kgs.)

22000

Maximum Travel Speed - Full Load (mph)

14.3

Lifting Speed - Full Load (fpm)

46

Gradeability - Maximum - Full Load

25.2

Basic Right-Angle Stacking Aisle Width (in.)

144.30+Load

Model

THDC2200B-24

Load Capacity (lbs./kgs.)

22000

Maximum Travel Speed - Full Load (mph)

14.3

Lifting Speed - Full Load (fpm)

46

Gradeability - Maximum - Full Load

24.8

Basic Right-Angle Stacking Aisle Width (in.)

133.43+Load
