    Loaded Container Handler

    Up to 90,000 lb. Lifting Capacity

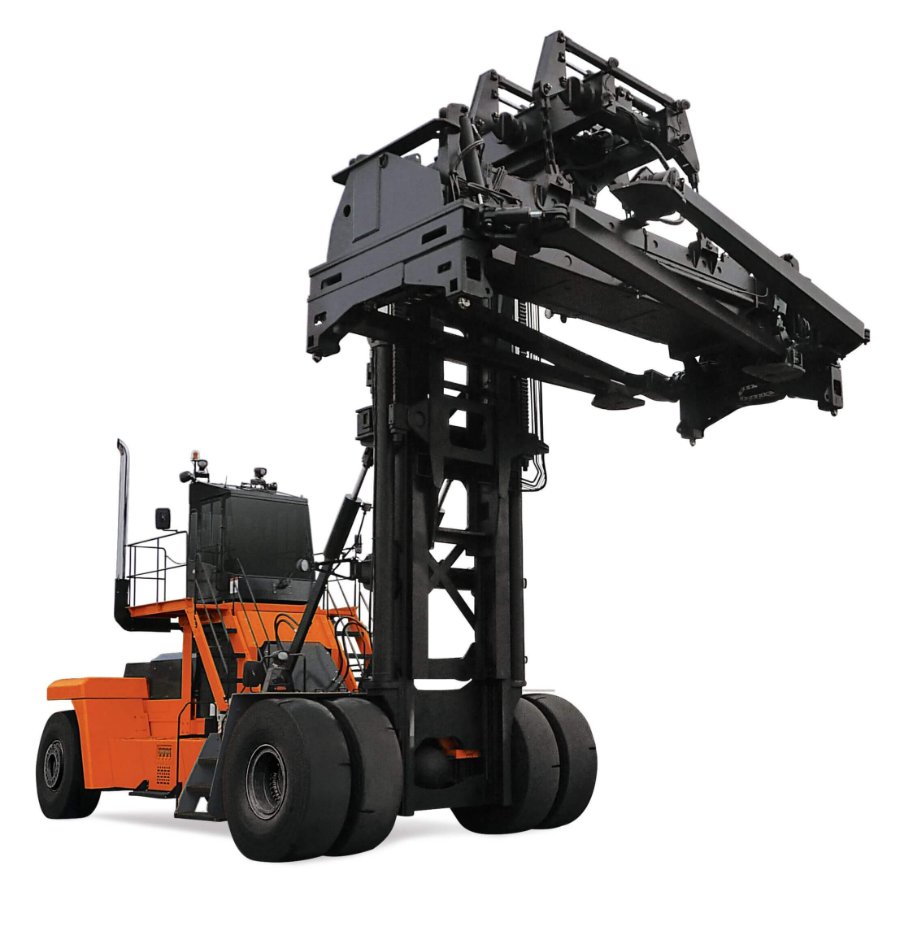

    Toyota's Loaded Container Handler is the king of the port. With a container lifting capacity of up to 90,000 lbs. and the ability to stack up to 6 containers high, this exceptionally stable container handler can be used in the most rugged applications. Popular in ports, terminals and shipping yards, the Toyota Loaded Container Handler will provide fast lifting cycles, high stacking and reduced freight costs.

    Apply For Financing Request A Quote
    Request Rental Quote

    Features

    King of the Port

    Toyota’s Loaded Container Handler is engineered to provide fast lifting cycles, high stacking and reduced freight costs. This forklift offers a wide variety of attachments to fit your material handling needs, including 3-spool main control valve (lift, tilt, attachment), and 4-point top pick twistlock attachments as well as a 2-point side post hook attachment for double stacking of empty containers.
    Technology on Display

    Every forklift in the Toyota THD line comes equipped with an MD4 7” Touchscreen Display. It combines the rugged power of the THD model lineup with the latest advancements in forklift technology to put ultimate customization, advanced diagnostics, and pertinent forklift information right at your fingertips.
    Powerful Performance

    Toyota’s Container Handler comes with a CUMMINS® QSL9 380 hp turbocharged diesel engine and Dana 36,000 powershift transmission with three forward and three reverse speeds. This forklift provides the power you need to perform your most challenging tasks.

    Specifications

    For more detailed, product specific specification data, select an individual model number from the chart below.

    Model Load Capacity (lbs./kgs.) Maximum Travel Speed - Full Load (mph) Lifting Speed - Full Load (fpm) Gradeability - Maximum - Full Load Basic Right-Angle Stacking Aisle Width (in.)
    THD8000-L6 80000 – 2 High / 75000– 6 High 20 47 9.8 522
    THD8600-L5 86000 – 2 High / 76000– 5 High 19.2 47 10.7 522
    THD9000-L3 90000 – 2 High / 90000– 3 High 19.2 47 11.5 522
    THD9000-L4 90000 – 2 High / 85000– 4 High 19.2 47 11.1 522

    Performance Data

    Model

    THD8000-L6

    Load Capacity (lbs./kgs.)

    80000 – 2 High / 75000– 6 High

    Maximum Travel Speed - Full Load (mph)

    20

    Lifting Speed - Full Load (fpm)

    47

    Gradeability - Maximum - Full Load

    9.8

    Basic Right-Angle Stacking Aisle Width (in.)

    522

    Model

    THD8600-L5

    Load Capacity (lbs./kgs.)

    86000 – 2 High / 76000– 5 High

    Maximum Travel Speed - Full Load (mph)

    19.2

    Lifting Speed - Full Load (fpm)

    47

    Gradeability - Maximum - Full Load

    10.7

    Basic Right-Angle Stacking Aisle Width (in.)

    522

    Model

    THD9000-L3

    Load Capacity (lbs./kgs.)

    90000 – 2 High / 90000– 3 High

    Maximum Travel Speed - Full Load (mph)

    19.2

    Lifting Speed - Full Load (fpm)

    47

    Gradeability - Maximum - Full Load

    11.5

    Basic Right-Angle Stacking Aisle Width (in.)

    522

    Model

    THD9000-L4

    Load Capacity (lbs./kgs.)

    90000 – 2 High / 85000– 4 High

    Maximum Travel Speed - Full Load (mph)

    19.2

    Lifting Speed - Full Load (fpm)

    47

    Gradeability - Maximum - Full Load

    11.1

    Basic Right-Angle Stacking Aisle Width (in.)

    522
