Lithium Mid Electric Pneumatic
8,000-11,000 lb. Lifting Capacity

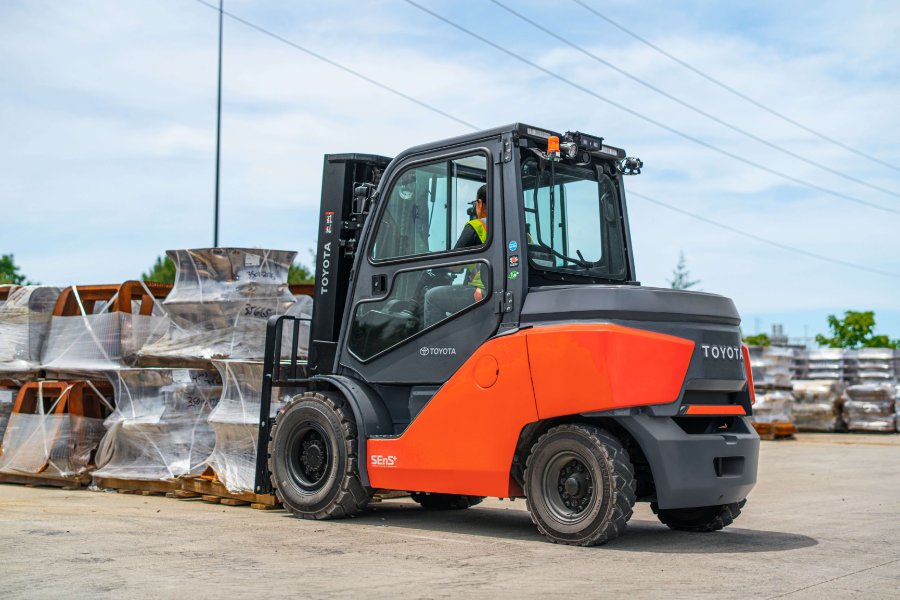

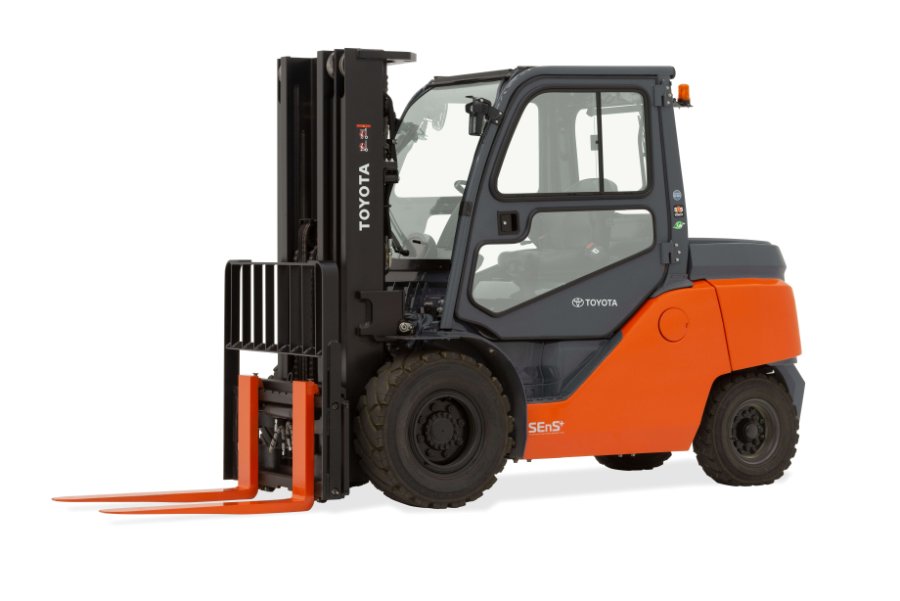

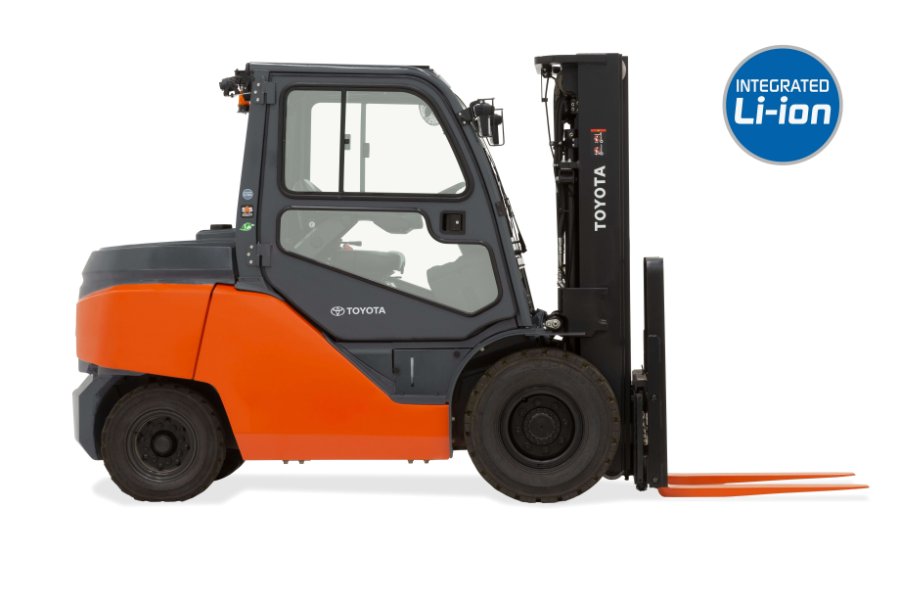

Toyota’s Lithium Mid Electric Pneumatic Counterbalance Forklift takes efficiency and performance to a whole new level. With a lifting capacity ranging from 8,000-11,000 lbs., this versatile lift can tackle your toughest handling challenges. The Lithium Mid Electric Pneumatic comes equipped with the power and performance you expect from an internal combustion forklift, but it’s ALL electric. The battery and the forklift were designed as one complete package to optimize operability, ergonomics, and productivity. Get ready to experience greater performance than you ever have before.
Specifications
For more detailed, product specific specification data, select an individual model number from the chart below.
| Model | Load Capacity (lbs./kgs.) | Maximum Travel Speed - Full Load (mph) | Lifting Speed - Full Load (fpm) | Gradeability - Maximum - Full Load | Basic Right-Angle Stacking Aisle Width (in.) |
|---|---|---|---|---|---|
| 9FBZ35U | 8000 (3500) | 14.1 (22.5) | 105 (535) | 9.6 (17) | 123.5 (3135) |
| 9FBZ40U | 9000 (4000) | 13.9 (22.5) | 104 (530) | 8.5 (15) | 125.5 (3185) |
| 9FBZ45U | 10000 (4500) | 13.5 (22) | 100 (510) | 7.4 (13) | 133.2 (3385) |
| 9FBZ50U | 11000 (5000) | 13.5 (22) | 100 (510) | 6.2 (11) | 134.6 (3420) |
Performance Data
Model
9FBZ35ULoad Capacity (lbs./kgs.)
8000 (3500)
Maximum Travel Speed - Full Load (mph)
14.1 (22.5)
Lifting Speed - Full Load (fpm)
105 (535)
Gradeability - Maximum - Full Load
9.6 (17)
Basic Right-Angle Stacking Aisle Width (in.)
123.5 (3135)
Model
9FBZ40ULoad Capacity (lbs./kgs.)
9000 (4000)
Maximum Travel Speed - Full Load (mph)
13.9 (22.5)
Lifting Speed - Full Load (fpm)
104 (530)
Gradeability - Maximum - Full Load
8.5 (15)
Basic Right-Angle Stacking Aisle Width (in.)
125.5 (3185)
Model
9FBZ45ULoad Capacity (lbs./kgs.)
10000 (4500)
Maximum Travel Speed - Full Load (mph)
13.5 (22)
Lifting Speed - Full Load (fpm)
100 (510)
Gradeability - Maximum - Full Load
7.4 (13)
Basic Right-Angle Stacking Aisle Width (in.)
133.2 (3385)
Model
9FBZ50ULoad Capacity (lbs./kgs.)
11000 (5000)
Maximum Travel Speed - Full Load (mph)
13.5 (22)
Lifting Speed - Full Load (fpm)
100 (510)
Gradeability - Maximum - Full Load
6.2 (11)
Basic Right-Angle Stacking Aisle Width (in.)
134.6 (3420)
