Order Picker
3,000 lb. Lifting Capacity

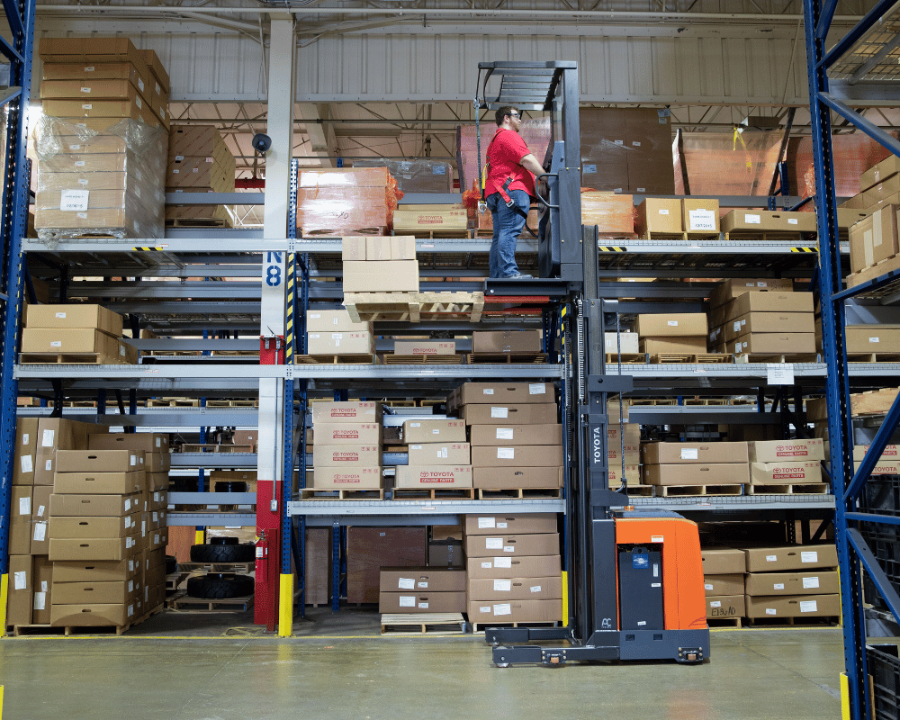

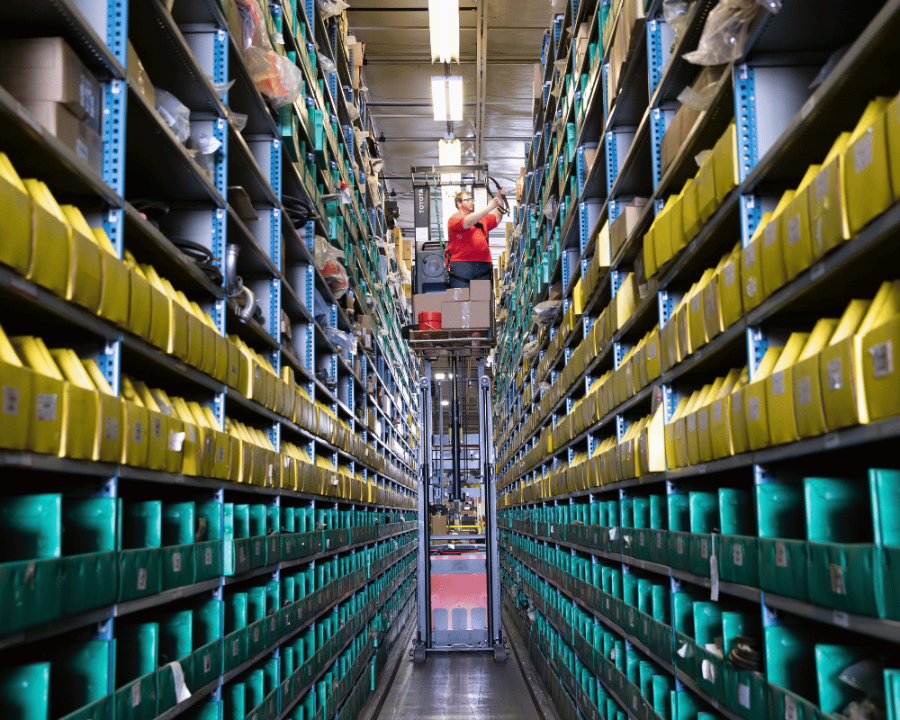

The Toyota Order Picker solves even the most challenging high-reaching warehouse needs. With lift heights up to 390 inches and cushioned mast staging, operators can comfortably reach your tallest racks for order picking. The Toyota Order Picker easily maneuvers narrow aisles in warehouses during case picking, thanks to optional wire guidance and double rail guidance systems. You’ll also drive to optimal efficiency with optional Lift Logic technology that continuously monitors lift height, allowing for optimized travel speed at various heights while still maintaining safe operation.
Features
Specifications
For more detailed, product specific specification data, select an individual model number from the chart below.
| Model | Power Type | Overall Width (in.) | Load Capacity (lbs./kgs.) | Maximum Travel Speed - Full Load (mph) | Lifting Speed - Full Load (fpm) |
|---|---|---|---|---|---|
| 8BPU15 | Battery (24V) | 40-60 | 3000 (1360) | 6.5 | 57 |
| 8BPUE15 | Battery (24V) | 40 | 3000 (1360) | 6.5 | 33 (168) |
| 8BPUH15 | Battery (36V) | 40-60 | 3000 (1360) | 6.5 | 80 (406) |
Performance Data
Model
8BPU15Power Type
Battery (24V)
Overall Width (in.)
40-60
Load Capacity (lbs./kgs.)
3000 (1360)
Maximum Travel Speed - Full Load (mph)
6.5
Lifting Speed - Full Load (fpm)
57
Model
8BPUE15Power Type
Battery (24V)
Overall Width (in.)
40
Load Capacity (lbs./kgs.)
3000 (1360)
Maximum Travel Speed - Full Load (mph)
6.5
Lifting Speed - Full Load (fpm)
33 (168)
Model
8BPUH15Power Type
Battery (36V)
Overall Width (in.)
40-60
Load Capacity (lbs./kgs.)
3000 (1360)
Maximum Travel Speed - Full Load (mph)
6.5
Lifting Speed - Full Load (fpm)
80 (406)
