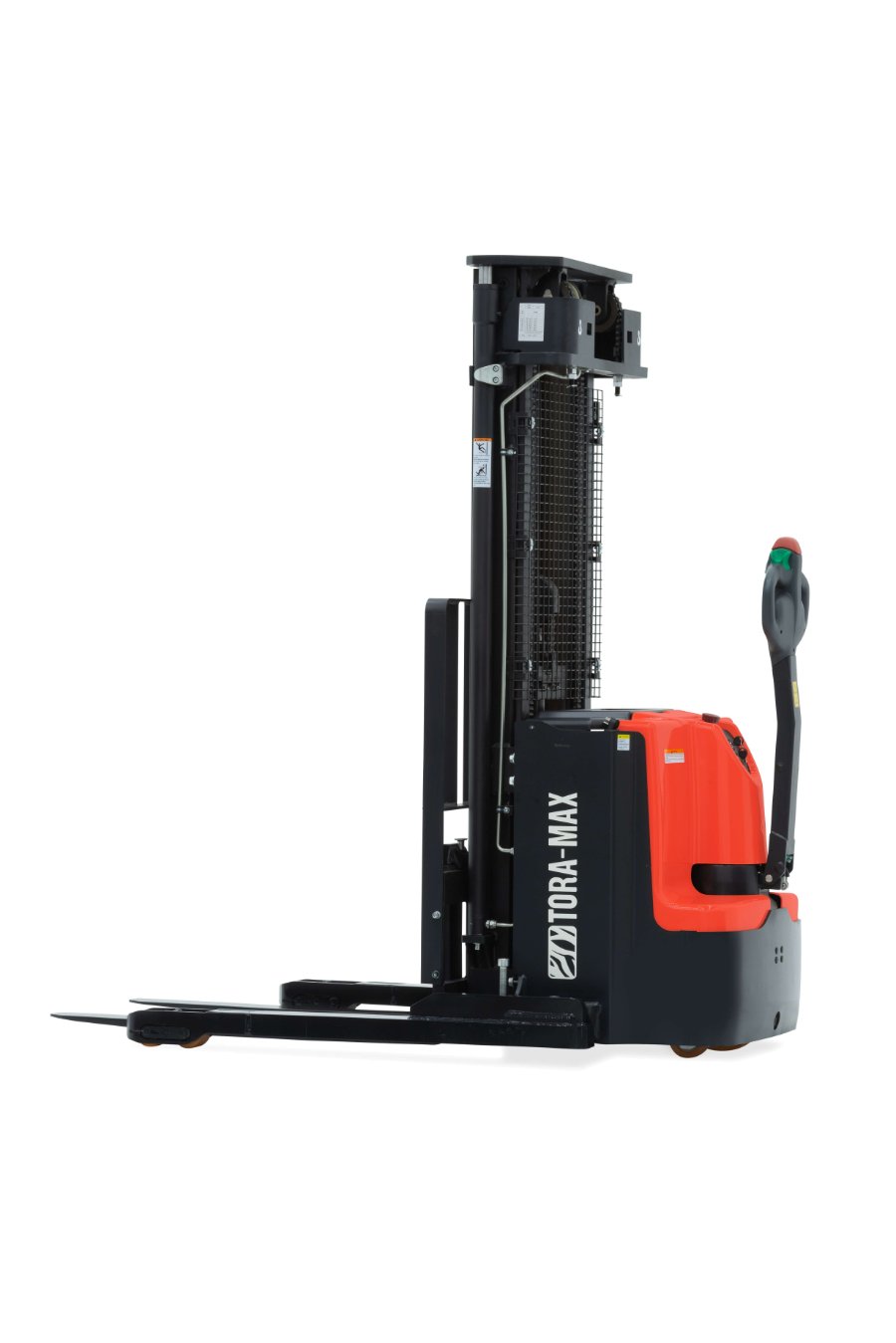

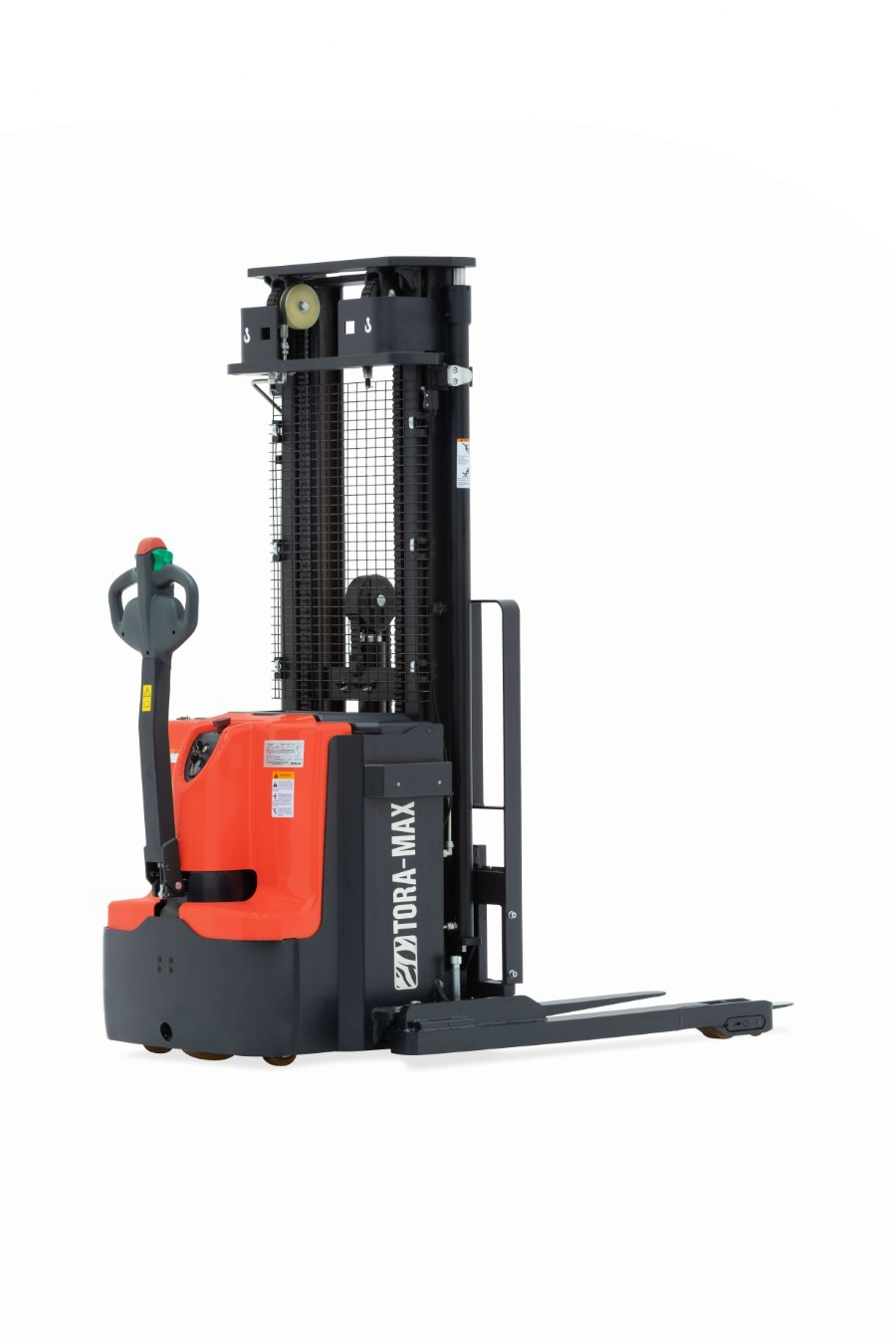

Tora-Max® Straddle Stacker
3,500-4,000 lb. Lifting Capacity

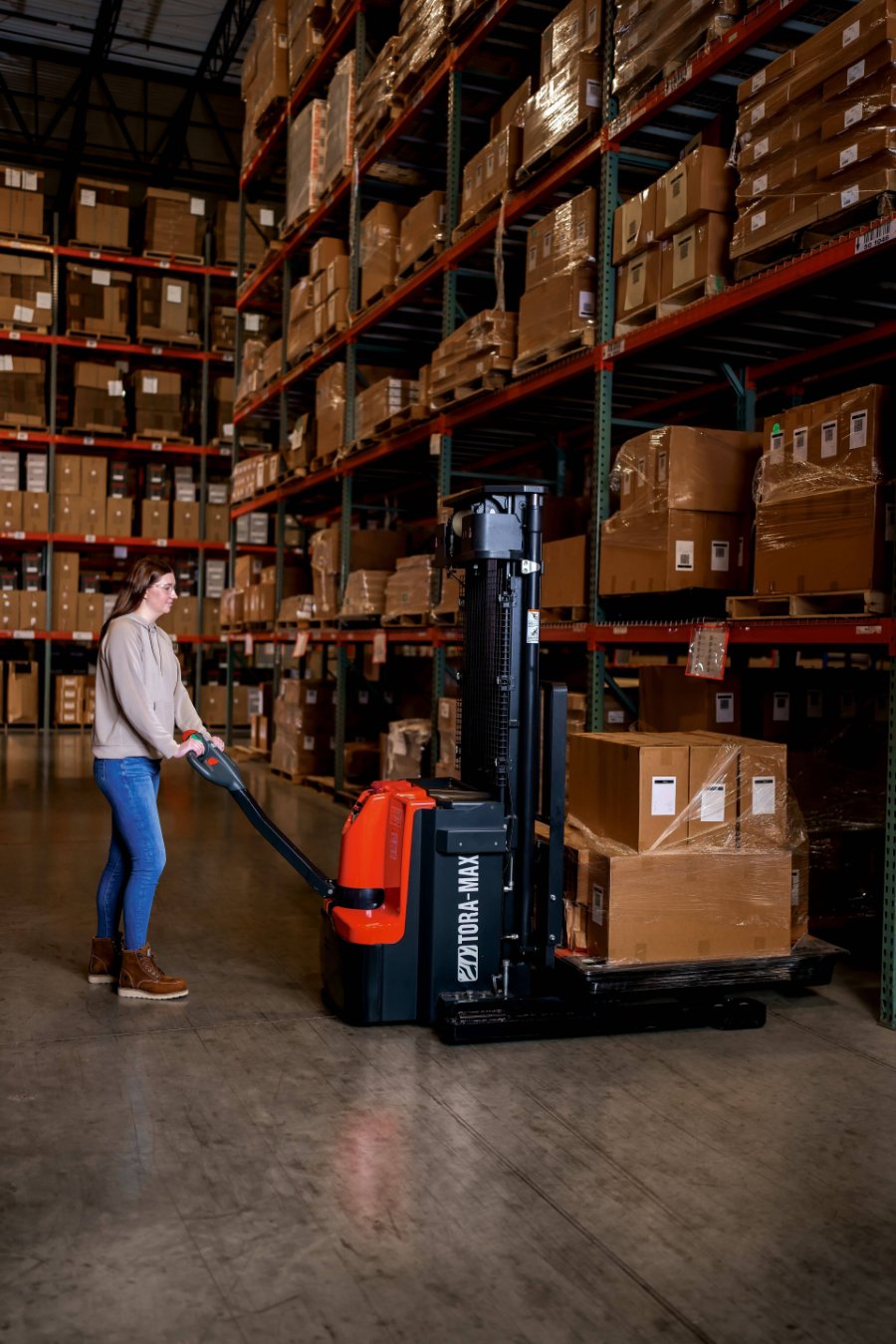

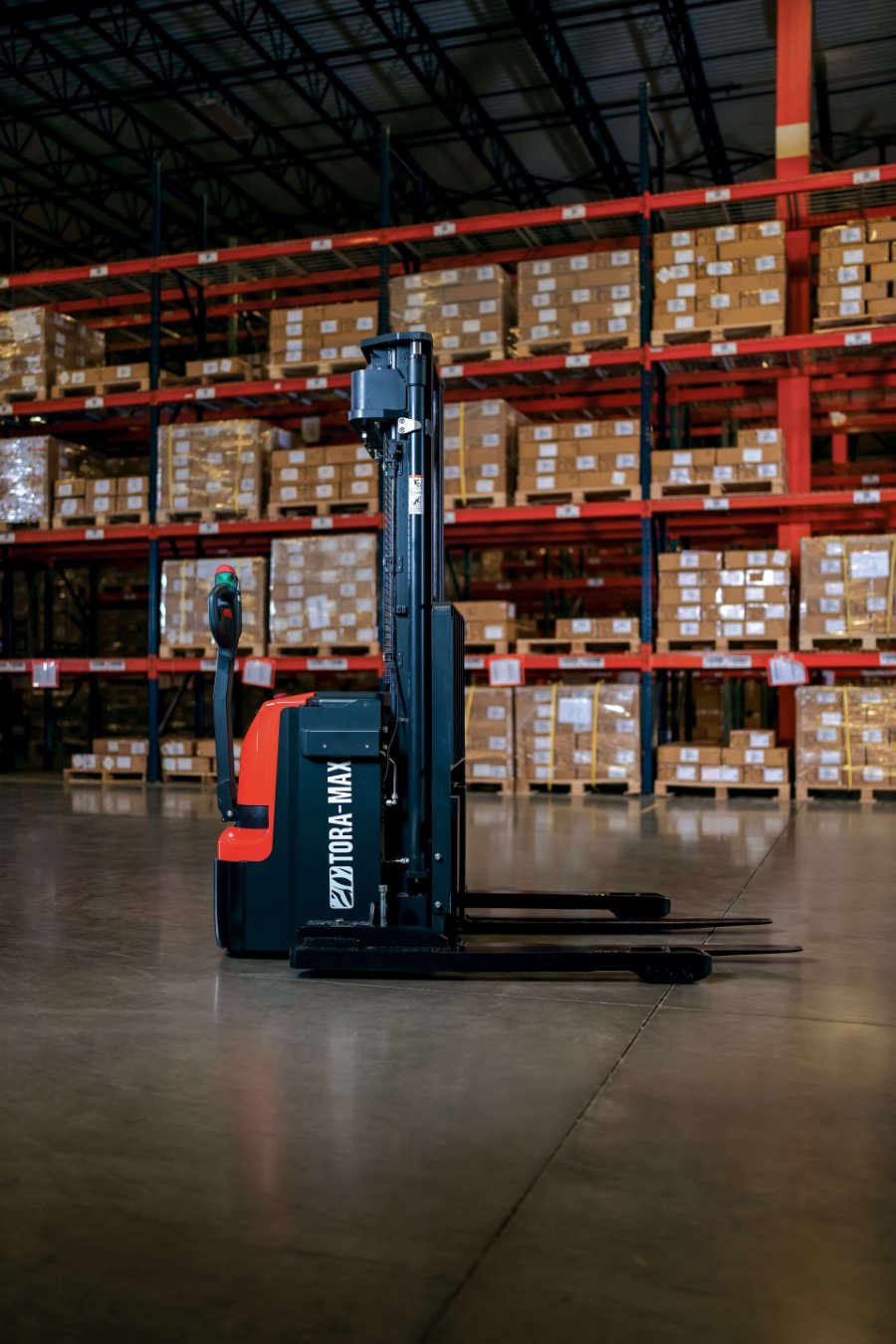

Ideal for repetitive processes, the Tora-Max® Straddle Stacker is the perfect lift to meet all your stacking needs. With a lifting capacity ranging from 3,500 – 4,000 lbs. and a maximum lift height of 207 inches, this stacker provides the versatility you need to handle various loads and stacking heights. Additionally, the Straddle Stacker is equipped with adjustable baselegs, also known as straddle legs, allowing you to maneuver various pallet sizes easily and efficiently.
Features
Specifications
For more detailed, product specific specification data, select an individual model number from the chart below.
| Model | Load Capacity (lbs./kgs.) | Maximum Travel Speed - Full Load (mph) | Lifting Speed - Full Load (fpm) | Gradeability - Maximum - Full Load | Basic Right-Angle Stacking Aisle Width (in.) |
|---|---|---|---|---|---|
| 2TSB35 | 3500 (1588) | 3.4 (5.4) | 25.59 (130) | 6 | 96 (2439) |
| 2TSB40 | 4000 (1814) | 3.4 (5.5) | 25.59 (130) | 6 | 96.3 (2446) |
Performance Data
Model
2TSB35Load Capacity (lbs./kgs.)
3500 (1588)
Maximum Travel Speed - Full Load (mph)
3.4 (5.4)
Lifting Speed - Full Load (fpm)
25.59 (130)
Gradeability - Maximum - Full Load
6
Basic Right-Angle Stacking Aisle Width (in.)
96 (2439)
Model
2TSB40Load Capacity (lbs./kgs.)
4000 (1814)
Maximum Travel Speed - Full Load (mph)
3.4 (5.5)
Lifting Speed - Full Load (fpm)
25.59 (130)
Gradeability - Maximum - Full Load
6
Basic Right-Angle Stacking Aisle Width (in.)
96.3 (2446)
