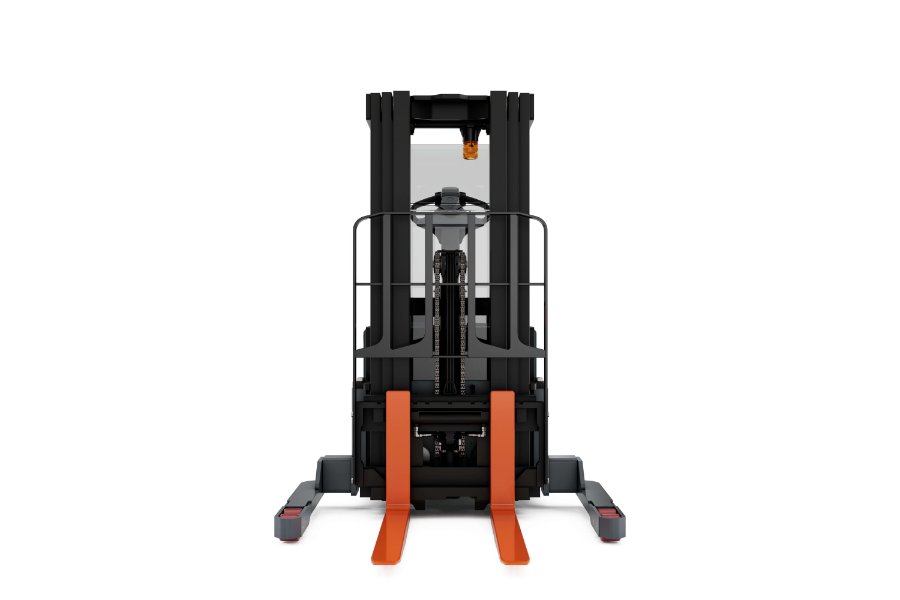

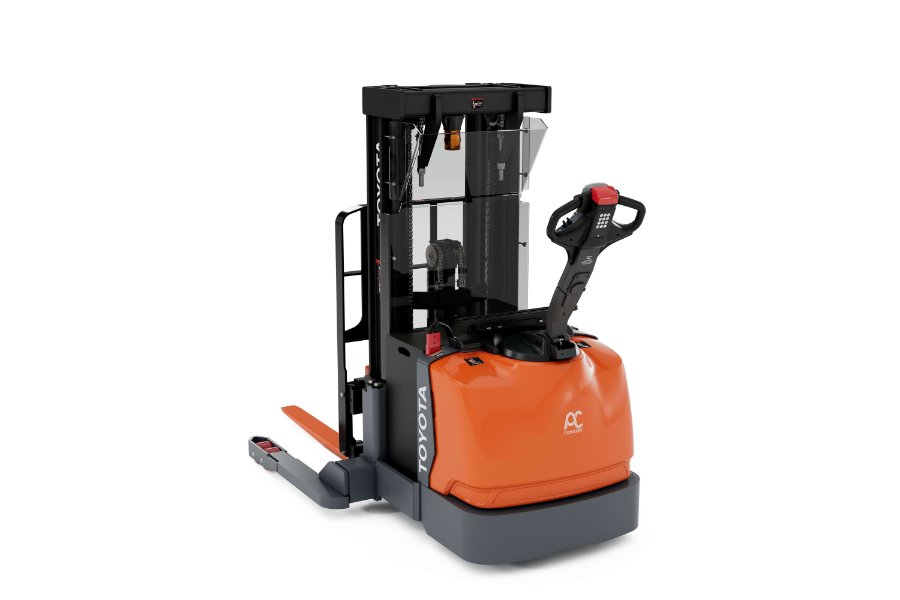

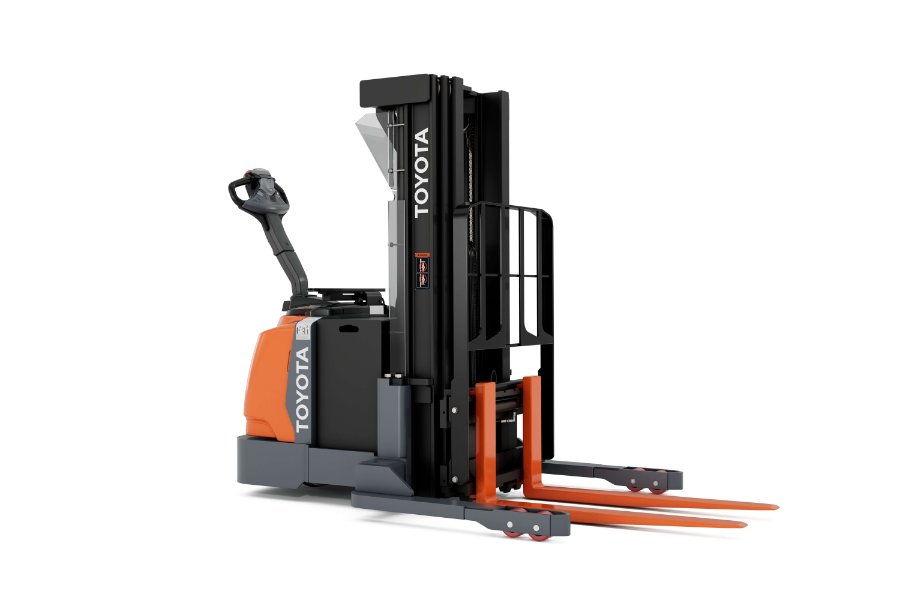

Walkie Straddle Stacker
2,200-4,000 lb. Lifting Capacity
When a traditional forklift isn’t necessary but you need to lift product above a second-tier rack, the Toyota Walkie Straddle Stacker is a cost-efficient, easy-to-use solution. With top-of-the-line durability and long-run performance, the Industrial Stacker is an economical complement to nearly any forklift fleet.
Features
Specifications
For more detailed, product specific specification data, select an individual model number from the chart below.
| Model | Load Capacity (lbs./kgs.) | Maximum Travel Speed - Full Load (mph) | Lifting Speed - Full Load (fpm) | Gradeability - Maximum - Full Load | Basic Right-Angle Stacking Aisle Width (in.) |
|---|---|---|---|---|---|
| WS1-HD22 | 2200 (998) | 3.5 (5.6) | 37 (188) | 6 | 84 |
| WS1-HD30 | 3000 (1361) | 3.5 (5.6) | 32 (163) | 6 | 88 |
| WS1-HD40 | 4000 (1814) | 3.5 (5.6) | 27 (137) | 6 | 88 |
Performance Data
Model
WS1-HD22Load Capacity (lbs./kgs.)
2200 (998)
Maximum Travel Speed - Full Load (mph)
3.5 (5.6)
Lifting Speed - Full Load (fpm)
37 (188)
Gradeability - Maximum - Full Load
6
Basic Right-Angle Stacking Aisle Width (in.)
84
Model
WS1-HD30Load Capacity (lbs./kgs.)
3000 (1361)
Maximum Travel Speed - Full Load (mph)
3.5 (5.6)
Lifting Speed - Full Load (fpm)
32 (163)
Gradeability - Maximum - Full Load
6
Basic Right-Angle Stacking Aisle Width (in.)
88
Model
WS1-HD40Load Capacity (lbs./kgs.)
4000 (1814)
Maximum Travel Speed - Full Load (mph)
3.5 (5.6)
Lifting Speed - Full Load (fpm)
27 (137)
Gradeability - Maximum - Full Load
6
Basic Right-Angle Stacking Aisle Width (in.)
88
